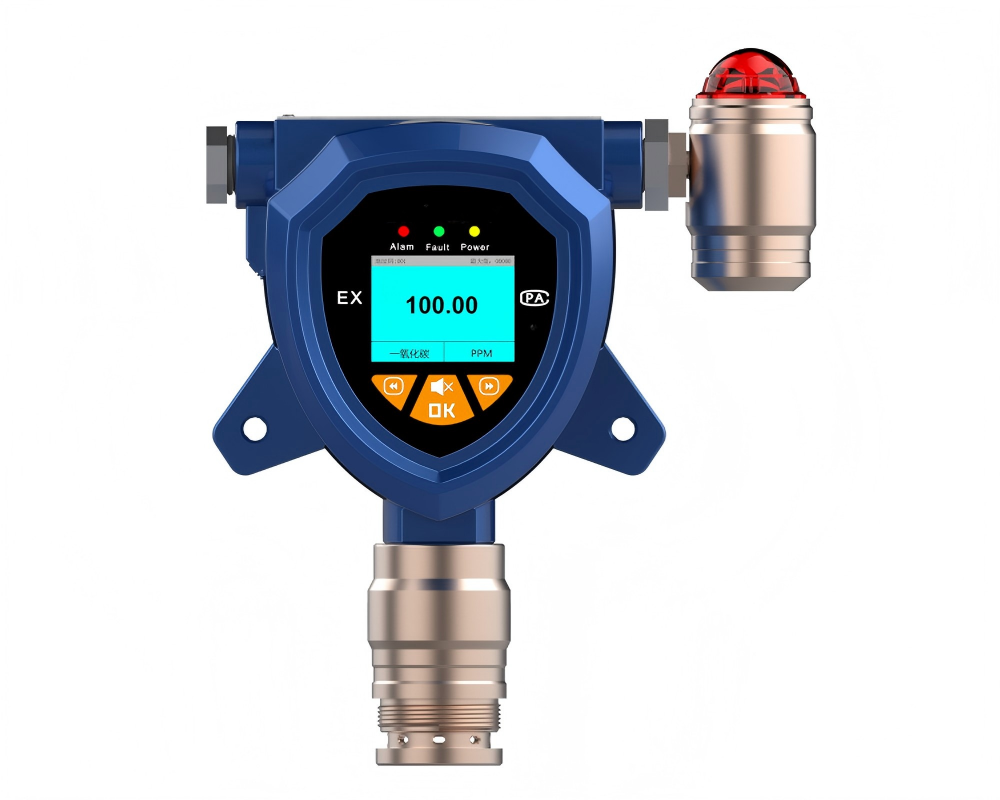

Induskey INK100 Fixed Explosion-Proof Gas Detector

Product Overview

The Induskey INK100 Fixed Explosion-Proof Gas Detector is a premium, industrial-grade safety instrument engineered for continuous, real-time hazard monitoring in demanding environments. Utilizing advanced diffusion-mode detection technology, the INK100 instantly translates gas concentration signals into stable electrical outputs. Powered by intelligent CPU processing, the device performs continuous signal amplification, AD sampling, and automatic temperature and humidity compensation to guarantee uncompromising accuracy.

Whether your facility requires an oxygen monitor, a combustible gas sensor, a VOC gas detector, or a highly specific toxic gas monitor, the INK100 is engineered to meet the high-reliability demands of modern industrial gas detection.

Key Features

• High-Fidelity Sensor Technology: Equipped with high-precision, long-life imported sensors utilizing electrochemical, infrared, PID photoionization, catalytic combustion, or semiconductor principles.
• Non-Intrusive Field Calibration: Engineered with an infrared remote control system, allowing operators to adjust alarm points, zero the device, and perform target point calibration without opening the enclosure —maintaining critical safety standards in hazardous zones.
• Comprehensive Local Display: Features an integrated LCD screen providing real-time, on-site visibility of gas concentrations and unit metrics including ppm, % LEL, % VOL, and mg/m3.
• Versatile Linkage Outputs: Features two groups of normally open passive contact outputs (24VDC/1A) designed to directly drive external equipment like fan AC contactors or solenoid valves.
• Multi-Tier Alarm System: Supports fully adjustable upper, middle, and lower limit alarm configurations across the full detection range , with an optional integrated sound and light alarm exceeding 85dB.

Technical Specifications

Standard Gas Detection Ranges (Partial List)

The INK100 can be calibrated for dozens of specific gases. Below are common industrial configurations:

Applications

The INK100 provides steadfast industrial gas detection across a wide variety of sectors, ensuring continuous personnel and asset protection. Ideal applications include:

• Chemical plants and pharmaceutical manufacturing workshops
• Chemical product and volatile drug storage warehouses
• Food manufacturing facilities, bakeries, and wine factories
• Laboratories and advanced research institutes

Installation & Output Options

Proper deployment is critical for accurate fixed gas detector performance. The INK100 features an ingenious structural design for easy wall-mounted installation using M6 expansion screws.

• Strategic Positioning: For monitoring gases with a specific gravity lighter than air, the detector should be mounted 0.3 meters from the ceiling. For heavier gases, mount the unit 0.3 meters from the ground.
• Coverage Range: The recommended effective monitoring area is 6x6 square meters per detector.
• System Integration: Functions seamlessly as a 4-20mA output gas detector while simultaneously supporting RS485 communication, allowing for robust integration into facility-wide PLCs or central alarm control units.

Why Choose Induskey

At Induskey, we understand that industrial safety leaves no room for error. The INK100 is engineered with advanced technology and exceptionally high stability to operate flawlessly in your most demanding environments. By combining long-life sensor technology  with highly adaptable integration options, Induskey delivers the exact specifications global industrial integrators require for long-term operational safety.

 Ordering Information

To request a quote, specify your target gas, or discuss custom configurations for your facility, please contact the Induskey global sales team.
