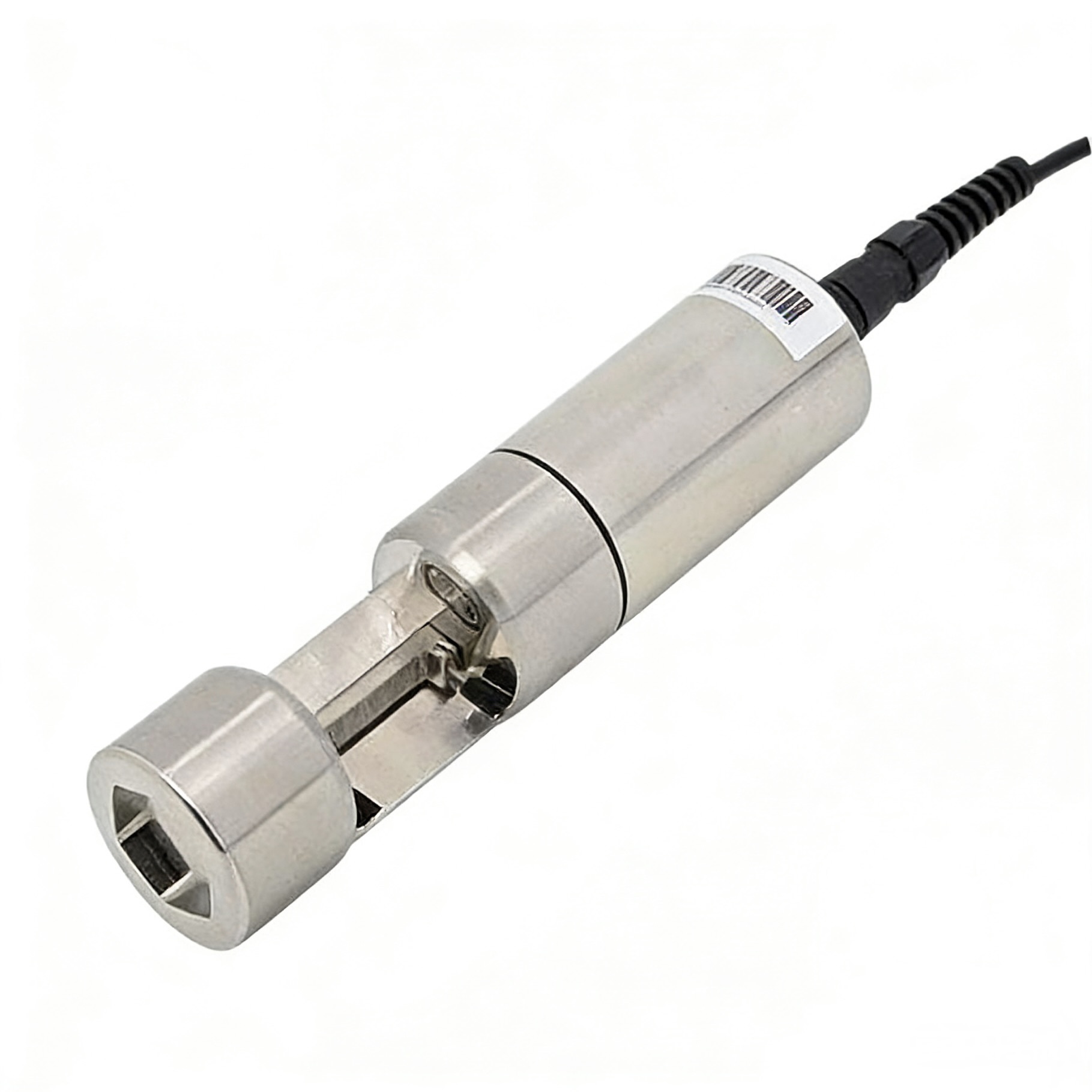

Induskey INK240 Self-Cleaning Transparency Sensor

Product Overview

The INK240 is an online self-cleaning water quality transparency sensor designed for long-term in-situ water environment monitoring. It adopts a reagent-free transmission light method, equipped with customized optical components, a compact 316L stainless steel housing, and a mechanical self-cleaning system. It solves the common problems of traditional optical sensors such as easy biofouling, data drift, and frequent maintenance, enabling stable long-term monitoring with low operation and maintenance costs.

2. Sensing Technology & Self-Cleaning System

• Sensing Technology: It uses the transmission light method to calculate water transparency based on light attenuation, with a measuring range of 0–500 cm, featuring good linearity and intuitive data. The customized optical structure improves anti-interference performance, reducing the impact of ambient light and water color to ensure stable measurement under various working conditions.

• Self-Cleaning System: Built-in rotating mechanical cleaning brush regularly wipes the optical window, effectively removing algae, microorganisms, sediment attachments and air bubble interference. With low power consumption (0.1 W in standby mode, 0.6 W in cleaning mode), it requires no additional air supply or chemicals, greatly extending the manual maintenance interval.

3. Key Features & Competitive Advantages

• Supports RS-485 with MODBUS protocol, providing strong anti-interference digital signal transmission, and can be directly connected to PLC/SCADA systems for industrial and environmental monitoring networks.

• Compact structure (Φ50 mm × 222.5 mm) adapts to pipelines, tanks, rivers and other installation scenarios, enabling convenient deployment with low installation costs.

• Low data drift and high long-term stability reduce calibration frequency and on-site maintenance workload.

• Supports 1-point / 2-point on-site calibration to adapt to different water environments, with storable

1. calibration parameters ensuring data traceability.

4. Technical Specifications


5. Applications

Suitable for ecological monitoring of surface water, rivers, lakes and reservoirs; influent and effluent monitoring in wastewater treatment plants; raw water and process monitoring in water plants; industrial circulating water and cooling water quality monitoring; aquaculture water transparency monitoring and other online water environment monitoring scenarios.
