1. Product Overview

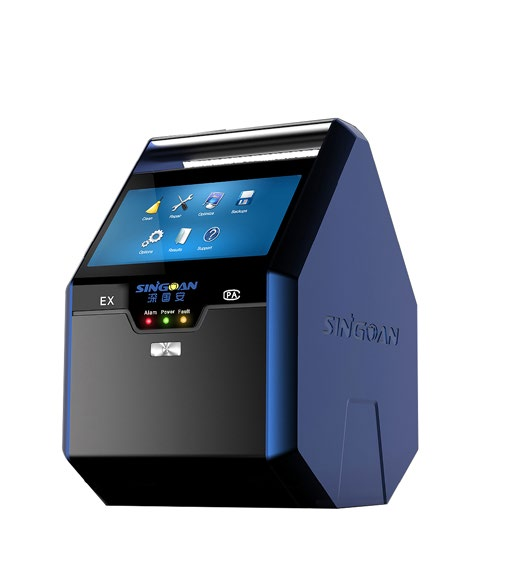

The Induskey SGA608 is a pump-suction, multi-parameter gas analyzer of the SGA-608 series, developed for multi-component gas detection. Each unit is freely configured with 1 to 10 target gases and can be expanded with PM2.5, PM10, temperature, and humidity monitoring; built-in smart sensor technology makes sensor modules plug-and-play. The analyzer operates on electrochemical, infrared, catalytic combustion, PID (photoionization), semiconductor, optical waveguide, or MOS principles, covering more than 1,000 flammable, toxic, and volatile (VOC) gases.
A 7-inch HD touchscreen displays all measured values at a glance and allows historical data to be queried or exported with automatically generated trend curves; multi-stage sample gas conditioning keeps data accurate, and an optional high-temperature probe permits direct sampling at up to 1200°C — solving flue gas, exhaust, and process-gas analysis that ordinary detectors cannot handle.
Designed for both fixed and portable use, the analyzer runs on 220V DC with a built-in rechargeable lithium battery for more than 10 hours of field operation, and is carried by hand (approx. 6 kg) to emergency scenes, plants, and monitoring points. Through the optional IoT platform, data is viewed synchronously on APP, mini-program, and PC, with gas over-limit alarms and mobile patrol tracking.
2. System Architecture
The SGA608 operates as a fully integrated pump-suction multi-parameter gas analysis platform with the following core components:
-
Modular Smart Sensor Array: 1 to 10 target gases from 1,000+ flammable, toxic, and VOC gases; expandable with PM2.5, PM10, temperature, and humidity. Smart sensor modules are plug-and-play with no restriction on range or principle.
-
7-inch HD Touchscreen Display: Industrial touch display in list or nine-grid view; shows current, maximum, minimum, 1-minute, and 1-hour average values.
-
Multi-Stage Sample Gas Conditioning: Ensures accurate measurement; optional high-efficiency water and dust removal filter protects sensors in humid or dusty sample streams.
-
Vacuum Pump Sampling System: 1.1 L/min flow rate for steady suction and rapid response.
-
Optional High-Temperature Probe: Allows direct sampling in environments up to 1200°C for boiler flue gas and exhaust analysis.
-
Signal Output Module: Wired RS485 / RS232 / USB; wireless Bluetooth / WIFI / GPRS.
-
Data Storage & Export: 100,000+ records; export via USB with automatic trend curve generation.
-
Dual Power System: 220V DC mains + built-in rechargeable lithium battery (≥10 h continuous operation).
-
IoT Wireless Module (Optional): Cloud-based data upload for APP, mini-program, and PC viewing.
3. Key Features & Competitive Advantages
A. 1-10 Parameters, Freely Combinable
-
Any combination of 1-10 target gases from 1,000+ flammable, toxic, and VOC gases.
-
Expandable with PM2.5, PM10, temperature, and humidity.
-
Smart sensor modules are plug-and-play with no restriction on range or principle.
B. 7-inch HD Touchscreen with Trend Analysis
-
Industrial HD touch display in list or nine-grid view.
-
Shows current, maximum, minimum, 1-minute, and 1-hour average values.
-
Historical data of any period can be queried, exported via USB, and automatically rendered as trend curves.
C. Multi-Stage Sample Gas Conditioning
D. Direct Sampling up to 1200°C (Optional)
-
The optional high-temperature probe allows direct sampling in environments up to 1200°C.
-
Ideal for boiler flue gas, exhaust, and other hot process gas analysis.
E. Smart Calibration & Data Compensation
-
Automatic zero calibration, K-value smart algorithm, and span-gas target-point calibration.
-
Intelligent data compensation plus temperature & humidity compensation keeps results stable.
-
Automatic reminders for connection faults and over-limit conditions.
F. IoT Cloud Platform Connectivity
-
Wireless upload to the IoT platform with synchronized viewing on mobile APP, PC, and mini-program.
-
Cloud-based scene configuration, one or multi-user management, mobile patrol, and device positioning.
-
No software installation required; all data stored in the cloud.
G. Fixed & Portable Dual Use
-
Powered by 220V DC with a built-in high-capacity rechargeable lithium battery for 10+ hours of continuous field work.
-
The 1.1 L/min vacuum pump provides steady suction.
-
Approx. 6 kg hand-carry enclosure moves easily between monitoring points.
4. Technical Specifications
5. Applications
The Induskey SGA608 is engineered for versatile deployment across industrial, environmental, and emergency response scenarios:
-
Emergency Response & Rescue: Rapid multi-gas assessment at chemical spills, leaks, and accident scenes.
-
Vehicle Exhaust Analysis: Mobile emission testing and compliance verification.
-
Boiler Flue Gas: High-temperature combustion gas analysis with optional 1200°C probe.
-
Industrial Park Pollutants: Multi-parameter ambient air quality monitoring in industrial zones.
-
Accident Scene Assessment: Comprehensive gas and particulate analysis for incident investigation.
-
Firefighter Safety Protection: Toxic gas and oxygen level monitoring at fire scenes.
-
Third-Party Environmental Tests: Certified portable analysis for environmental audit and compliance testing.
-
Sewer Construction Safety: Confined-space multi-gas detection before and during underground work.
-
Petroleum & Petrochemical: Process gas, flare gas, and storage tank vapor analysis.
-
Chemical & Smelting Plants: Multi-component emission and workplace atmosphere monitoring.
-
Coal & Thermal Power: Flue gas desulfurization, denitrification, and combustion optimization analysis.
-
Environmental Air Monitoring: Ambient PM2.5, PM10, VOC, and toxic gas field measurement.
6. Optional Cloud Platform
To maximize operational oversight, the SGA608 seamlessly integrates with the optional Induskey industrial IoT Cloud Platform via wireless data upload.
-
Real-Time Remote Dashboard: Data is viewed synchronously on mobile APP, mini-program, and PC with no software installation required. All measurement values, historical trends, and device status are accessible remotely.
-
Multi-User & Scene Management: Cloud-based scene configuration supports one or multi-user management, mobile patrol tracking, and device positioning across multiple monitoring sites.
-
Alarm Notification: Supports gas over-limit alarms with automatic push notifications via APP, SMS, and email. Threshold, interval, timeout, offline, and abnormal alarms are all configurable.
-
Data Export & Reporting: Historical data of any period can be queried and exported with automatically generated trend curves. All data is stored in the cloud, enabling long-term trend analysis, regulatory compliance reporting, and operational efficiency assessment.
