1. Product Overview

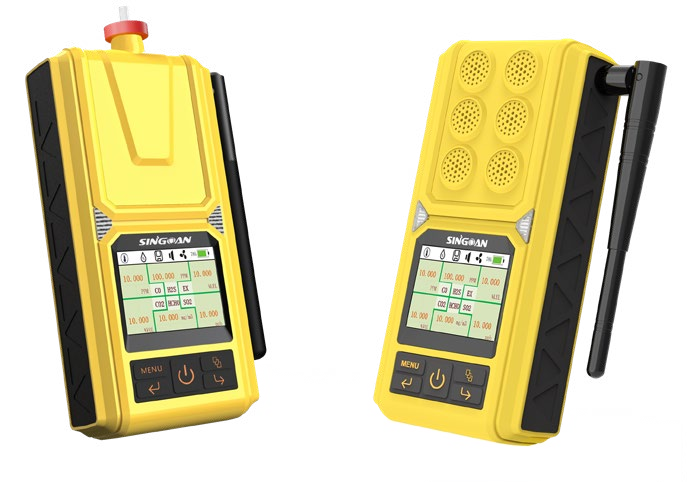

The Induskey SGA606 is a handheld multi-gas detector of the SGA-606 series, developed specifically for customers with multi-gas monitoring needs. It combines portable operation, intrinsically safe explosion-proof construction, monitoring & alarming, and smart IoT connectivity in one instrument. Each unit is individually configured with 1 to 6 gases — with no restriction on gas type, measuring range, or detection principle — and alerts the user through audible, visual, and vibration alarms.
Depending on the target gases, the detector operates on electrochemical, catalytic combustion, infrared, PID (photoionization), MOS, semiconductor, or optical waveguide sensing principles, covering more than 1,000 combustible, toxic, and VOC gases. Two sampling versions are offered: SGA-606A (natural diffusion) and SGA-606B (active pump-suction, 400–600 cc/min) for pre-entry sampling of confined spaces.
Connected to the dedicated IoT platform, measurement data can be viewed in real time on a PC or mobile APP, with alarm push notifications via email, SMS, and WeChat — allowing safety managers to supervise target gases efficiently across sites. Carried by inspection personnel with an Exib IIC T6 Gb intrinsic-safety rating and IP67 protection, the detector solves simultaneous multi-hazard monitoring during occupational health checks, safety patrols, and leak-source investigation where fixed transmitters cannot reach.
2. System Architecture
The SGA606 operates as a fully integrated handheld multi-gas detection platform with the following core components:
-
Modular Smart Sensor Array: 1 to 6 gas sensors in any combination — electrochemical, catalytic combustion, infrared, PID, MOS, semiconductor, or optical waveguide. Imported gas sensors for assured performance.
-
2.4-inch HD Color LCD: Displays real-time concentration values for all configured gases simultaneously with 5-key operation.
-
Triple Local Alarm Module: Audible, visual, and vibration alarms with on-screen text prompts; covers high/low thresholds, low battery, sensor fault, and fall-down (man-down) events.
-
IoT Wireless Module (Optional): Real-time data transmission to dedicated IoT platform; PC and mobile APP viewing with multi-channel remote alerts.
-
5000 mAh Polymer Lithium Battery: Delivers ≥20 hours of continuous operation (electrochemical configuration); recharged via standard Micro USB at DC 5V.
-
Optional Data Storage: 100,000 records at adjustable 1–600 s intervals; viewable on-device or on PC with auto-logging of power on/off, alarms, and faults.
-
High-Strength ABS+PC Housing: Exib IIC T6 Gb intrinsic-safety rating with IP67 protection.
3. Key Features & Competitive Advantages
A. Customizable 1-6 Gas Combinations
-
Each instrument is individually configured with one to six gases — unrestricted in gas type, measuring range, and detection principle.
-
Imported gas sensors for assured performance and long-term stability.
B. Triple Local Alarming with Man-Down Alert
-
Audible, visual, and vibration alarms with on-screen text prompts.
-
Alarm signals cover high/low thresholds, low battery, sensor fault, and fall-down (man-down) events for lone-worker safety.
C. IoT Platform with Multi-Channel Remote Alerts
-
Real-time data on PC or mobile APP via the dedicated IoT platform.
-
Alarm push via email, SMS, voice call, and WeChat to one or multiple recipients.
-
Configurable threshold, interval, timeout, offline, and abnormal alarms.
D. Patented Algorithm, PPB-Level Recognition
-
Patented technology and algorithms precisely identify PPB-level target gases.
-
Full-range data compensation and correction deliver strong anti-interference performance.
-
Multi-point target calibration for fast, accurate response.
E. High-Performance Adjustable Sampling Pump
-
The pump-suction version provides a stable, long-lasting airflow of 400–600 cc/min with 10 adjustable speed levels.
-
Consistent sampling in ducts, pits, and confined spaces.
F. 5000mAh Battery for All-Day Operation
G. Full Lifecycle Monitoring & Data Management
-
Sensor lifecycle monitoring with automatic fault and calibration reminders.
-
Optional 100,000-record data storage with export and printing.
-
Smart light-sensor brightness control, unit and language switching.
-
Dust filter, alligator clip, and lanyard accessories available.
4. Technical Specifications
5. Applications
The Induskey SGA606 is engineered for versatile deployment across personal safety and multi-hazard patrol inspection scenarios:
-
Occupational Health & Safety: Personal exposure monitoring for workers in hazardous environments with simultaneous multi-gas threats.
-
Leak Source Detection: Rapid localization of multiple gas leaks in process areas and storage facilities.
-
Tunnel Construction: Confined-space atmospheric monitoring before and during tunneling operations.
-
Safety Patrols: Routine multi-gas safety rounds in chemical plants, refineries, and industrial facilities.
-
Underground Pipeline Maintenance: Multi-gas detection in manholes, vaults, and subsurface infrastructure.
-
Chemical Plant Boundary: Perimeter monitoring for fugitive emissions and environmental compliance.
-
Smelting, Steel & Coking Plants: Combustible and toxic gas surveillance in high-temperature process areas.
-
Coal & Thermal Power: Methane, carbon monoxide, and hydrogen sulfide detection in boiler and coal handling areas.
-
Fire Engineering: Multi-gas screening at fire scenes and post-incident investigation.
-
Sewage Treatment: Hydrogen sulfide, methane, and oxygen deficiency monitoring in wet wells and digesters.
-
Fumigation & Sterilization: Phosphine and other fumigant residue detection.
-
Food Processing & Cold Storage: Ammonia and refrigerant leak detection.
-
Environmental Air Monitoring: Ambient multi-gas and VOC field measurement.
6. Optional Cloud Platform
To maximize operational oversight, the SGA606 seamlessly integrates with the optional Induskey industrial IoT Cloud Platform via wireless transmission module.
-
Real-Time Remote Dashboard: Safety managers can view measurement data in real time on PC or mobile APP, monitoring up to 6 gases simultaneously across multiple personnel and sites.
-
Multi-Channel Alarm Push: Supports programmable threshold alarms with automatic push notifications via email, SMS, voice call, and WeChat to one or multiple recipients — ensuring no critical alarm is missed.
-
Multi-Site Centralized Management: Enables organization of inspection records by operator, patrol route, and site location, facilitating data-driven safety management across distributed teams.
-
Data Export & Reporting: Generates patrol logs, historical concentration curves, alarm incident reports, and lone-worker man-down records for occupational health audits, regulatory compliance, safety training, and incident investigation.
