1. Product Overview

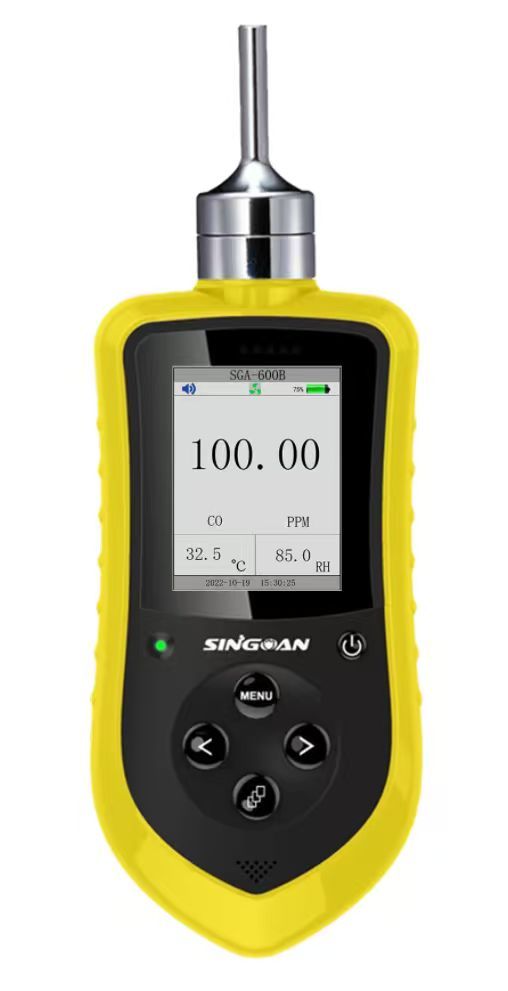

The Induskey SGA600 is a compact, lightweight handheld gas detector of the SGA-600 series, designed for personal and patrol-type gas measurement. With one-button start-up and no chemical reagents required, it measures gas concentration in air in real time; when the measured gas reaches a preset alarm point, the unit automatically issues audible and visual alarms together with an on-screen text prompt. Temperature & humidity measurement, data storage, and smart light-sensor control are available as options.
Depending on the target gas, the detector operates on electrochemical, catalytic combustion, infrared, PID (photoionization), semiconductor, or optical waveguide sensing principles, covering more than 1,000 combustible, toxic, and volatile gases. Three sampling versions are offered: SGA-600A (natural diffusion), SGA-600B (active pump-suction, 400–600 cc/min), and SGA-600C (pump-suction with a 950 mm telescopic probe rod) — the pump and probe versions allow sampling before entry into pits, tanks, tunnels, and other confined or hard-to-reach spaces.
With an intrinsically safe Exib IIC T4 Gb rating and IP65 protection in a high-strength ABS+PC housing of only 190–290 g, the detector is carried by inspection personnel or held at the measurement point — solving personal exposure monitoring and leak-source localization where fixed transmitters cannot reach.
2. System Architecture
The SGA600 operates as a fully integrated handheld gas detection platform with the following core components:
-
Modular Smart Sensor: Electrochemical, catalytic combustion, infrared, PID, semiconductor, or optical waveguide sensor covering 1,000+ gases with PPB-level sensitivity.
-
2.4-inch HD Color LCD: Displays gas name, range/unit, live value, temperature, humidity, time, battery level, pump and alarm status, maximum, 1-minute and 1-hour averages.
-
Nano-Level Microprocessor: Combined with smart algorithms for precise gas concentration calculation and full-range temperature & humidity compensation.
-
Alarm Module: Audible, visual, and text prompts; high/low alarm, low battery, and fault indication.
-
2800 mAh Polymer Lithium Battery: Supports ≥20 hours of continuous operation (electrochemical configuration); recharged via standard Micro USB at DC 5V.
-
Optional Data Storage: 100,000+ measurement records at adjustable 1–600 s intervals, viewable on-device or on PC.
-
Optional Temp/Humidity Sensor: Temperature -40 ~ +80°C; humidity 0-100%RH.
-
Optional Light Sensor: Automatic screen brightness adjustment.
-
High-Strength ABS+PC Housing: Intrinsically safe Exib IIC T4 Gb with IP65 protection.
3. Key Features & Competitive Advantages
A. Three Sampling Versions for Every Scenario
-
SGA-600A: Natural diffusion for ambient air monitoring.
-
SGA-600B: Active pump-suction (400–600 cc/min) for rapid response and remote sampling.
-
SGA-600C: Pump-suction with 950 mm telescopic probe rod — sample gas before entering confined spaces and reach distant leak points.
B. Intrinsically Safe, Pocket-Sized Rugged Design
-
Exib IIC T4 Gb intrinsic-safety rating with IP65 protection.
-
Patented appearance and circuit design in a high-strength ABS+PC housing of only 190–290 g.
-
Ergonomically shaped for one-hand operation.
C. One-Button Start, Information-Rich Color Display
-
Ready to measure at power-on.
-
2.4-inch HD color LCD shows gas name, range/unit, live value, temperature, humidity, time, battery level, pump and alarm status, maximum, 1-minute and 1-hour averages.
D. Premium Sensors with PPB-Level Sensitivity
-
First-tier international brand gas sensors combined with a nano-level microprocessor and smart algorithms precisely capture PPB-level changes.
-
Full-range temperature & humidity compensation and data correction keep readings stable and accurate.
E. Smart Calibration & Maintenance Reminders
-
Zero adjustment, target-value calibration, and baseline adjustment built in.
-
The unit automatically reminds the user of sensor faults and due calibration dates.
F. 20-Hour Runtime with Micro USB Charging
G. 100,000-Record Data Logging (Optional)
-
Stores 100,000+ measurement records at adjustable 1–600 s intervals.
-
Viewable on-device or on PC, with automatic logging of power on/off, alarm, and fault events.
-
Data download, export, and printing supported.
H. Wide Measuring Range & High Precision
-
Measuring range: 0-1/2/5/10/50/100/500/1,000/2,000/5,000/10,000/50,000 (per sensor & principle).
-
Resolution: 0.001/0.01/0.1/1/2/5 (per sensor & principle).
-
Units: PPM, %LEL, %VOL, mg/m³, µg/m³ (free switching).
-
Accuracy: ≤±3%; repeatability: ≤±2%; linearity error: ≤±2%.
-
Response time: ≤30 s (T90).
4. Technical Specifications
5. Applications
The Induskey SGA600 is engineered for versatile deployment across personal safety and patrol inspection scenarios:
-
Occupational Health & Safety: Personal exposure monitoring for workers in hazardous environments.
-
Leak Source Detection: Rapid localization of gas leaks in process areas and storage facilities.
-
Tunnel Construction: Confined-space atmospheric monitoring before and during tunneling operations.
-
Patrols: Routine safety rounds in chemical plants, refineries, and industrial facilities.
-
Underground Pipeline Maintenance: Gas detection in manholes, vaults, and subsurface infrastructure.
-
Chemical Plant Boundary: Perimeter monitoring for fugitive emissions and environmental compliance.
-
Smelting, Steel & Coking Plants: Combustible and toxic gas surveillance in high-temperature process areas.
-
Coal & Thermal Power: Methane, carbon monoxide, and hydrogen sulfide detection in boiler and coal handling areas.
-
Fire Engineering: Combustible gas screening at fire scenes and post-incident investigation.
-
Sewage Treatment: Hydrogen sulfide, methane, and oxygen deficiency monitoring in wet wells and digesters.
-
Fumigation & Sterilization: Phosphine and other fumigant residue detection.
-
Food Processing & Cold Storage: Ammonia leak detection in refrigeration systems.
-
Environmental Air Monitoring: Ambient VOC and toxic gas field measurement.
6. Optional Cloud Platform
To maximize operational oversight, the SGA600 seamlessly integrates with the optional Induskey industrial IoT Cloud Platform via USB data export or Bluetooth wireless upload (optional).
-
Real-Time Data Upload: Inspection personnel can upload measurement records to the cloud platform for centralized visibility of patrol data, alarm events, and equipment status.
-
Multi-Personnel Patrol Management: Enables organization of inspection records by operator, patrol route, and site location, facilitating data-driven safety management across multiple teams.
-
Alarm Notification: Supports programmable threshold alarms and automatic dispatch of notifications to safety supervisors and control rooms via SMS and email when hazardous levels are detected during patrols.
-
Data Export & Reporting: Generates patrol logs, historical concentration curves, and incident reports for occupational health audits, regulatory compliance, and safety training documentation.
