1. Product Overview

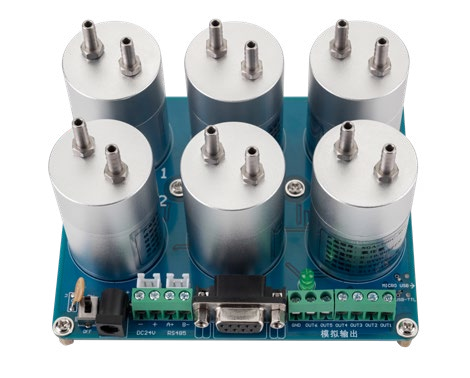

The Induskey SGA-ZHB-6 is a six-channel signal conversion board developed specifically for air quality monitoring, pollution source online monitoring, and odor online monitoring. According to customer requirements, the board accepts 1 to 6 smart gas sensor modules for different gases and outputs all channel signals uniformly over RS485, RS232, or USB-to-TTL serial interfaces — with no restriction on measuring range or sampling method.
Through the inserted sensor modules, the board is compatible with electrochemical, catalytic, infrared, PID (photoionization), and semiconductor sensing principles, supporting more than 1,000 combustible, toxic, and volatile gases. Built-in imported original sensors deliver high accuracy and stability and sensitively capture PPB-level gas concentrations; diffusion or pump-suction sampling can be selected to match the monitoring scenario.
Built on an intrinsically safe circuit with patented technology, algorithms, and design, the board is embedded into online monitoring instruments and stations. All sensor modules share a unified size, unified pin positioning, and a unified usage method, so gas configurations can be changed without redesign — solving rapid integration and fast productization of multi-gas monitoring equipment for OEM customers. Free commissioning tools and an open communication protocol further simplify secondary development.
2. System Architecture
The SGA-ZHB-6 operates as a fully integrated six-channel signal acquisition and aggregation unit with the following core components:
-
Six Smart Sensor Sockets: Accepts 1-6 smart gas sensor modules for different target gases, freely combinable with no restriction on measuring range or sampling method.
-
Signal Aggregation & Output Unit: Outputs all channels uniformly over RS485, RS232, or USB-to-TTL serial interfaces, with multiple signal options for easy commissioning and connection to the customer's host system.
-
Sampling System: Diffusion or pump-suction sampling selectable to match the monitoring scenario.
-
Sensor Core: Imported original sensors offering high accuracy, strong stability, and sensitive PPB-level response.
-
Power Input: DC 24V (per board terminal marking).
-
Intrinsically Safe Circuit: Patented technology, algorithms, and design ensure safe, reliable operation in online monitoring instruments.
-
Unified Module Standard: All gas modules share a unified size, unified pin positioning, and a unified usage method for plug-and-play interchangeability.
-
Free Commissioning Tools: Open communication protocol and free debug tools simplify secondary development.
3. Key Features & Competitive Advantages
A. Six-in-One Gas Detection
-
Accepts 1-6 smart gas sensor modules for different target gases and outputs all channels uniformly.
-
One board serves air quality, pollution source, and odor online monitoring applications.
B. Unified Multi-Signal Output
-
Unified output over RS485, RS232, or USB-to-TTL serial interfaces.
-
Multiple signal options for easy commissioning and connection to the customer's host system or data logger.
C. Free 1-6 Gas Combination
D. Broad Technology & Gas Compatibility
-
Compatible with electrochemical, catalytic, infrared, PID, and semiconductor principles.
-
Supporting more than 1,000 combustible, toxic, and volatile gases.
E. Imported Sensors with PPB-Level Sensitivity
F. Unified Mechanical & Electrical Design
-
All gas modules share a unified size, unified pin positioning, and a unified usage method.
-
Standardized modular design is plug-and-play, factory pre-calibrated with no recalibration required.
G. Open Protocol & Free Commissioning Tools
-
Free debug tools and an open communication protocol simplify secondary development.
-
Patented technology, algorithms, and design with an intrinsically safe circuit accelerate product integration.
4. Technical Specifications
5. Applications
The Induskey SGA-ZHB-6 is engineered for versatile integration across environmental monitoring and multi-gas online analysis scenarios:
-
Air Quality Monitoring: Multi-parameter ambient air monitoring stations for urban and industrial zone air quality assessment.
-
Pollution Source Online Monitoring: Continuous emission monitoring (CEM) at industrial stacks and discharge points.
-
Odor Online Monitoring: Volatile organic compound and odorant detection for waste treatment, agriculture, and chemical facilities.
-
Multi-Gas OEM Equipment Integration: Ready-made six-channel acquisition front end for environmental instrument manufacturers.
-
Secondary Development via Open Protocol: Standardized outputs and free tools enable rapid firmware development for custom analyzers.
-
Serial Data Acquisition Front Ends: Unified multi-channel output for connection to environmental data platforms and government monitoring networks.
6. Host System & Optional Cloud Platform Integration
To maximize operational flexibility, the SGA-ZHB-6 seamlessly integrates with host systems and the optional Induskey industrial IoT Cloud Platform via standardized serial outputs.
-
Real-Time Multi-Channel Data Acquisition: RS485, RS232, and USB-to-TTL outputs enable direct connection to data acquisition systems, environmental monitoring platforms, and microcontrollers for real-time monitoring of up to six gas concentrations simultaneously.
-
Multi-Node Network Integration: RS485 Modbus protocol supports multi-drop networking of multiple SGA-ZHB-6 boards, facilitating centralized air quality and pollution source monitoring across distributed monitoring stations.
-
Alarm & Control Logic: Digital serial signals enable integration with alarm controllers and automated sampling systems for multi-gas safety and compliance interlock.
-
Cloud Platform Uplink: When connected to a host gateway, aggregated measurement data from all six channels can be uploaded to the Induskey IoT Cloud Platform for remote monitoring, historical trending, regulatory reporting, and alarm notification via PC and mobile APP.
