1. Product Overview

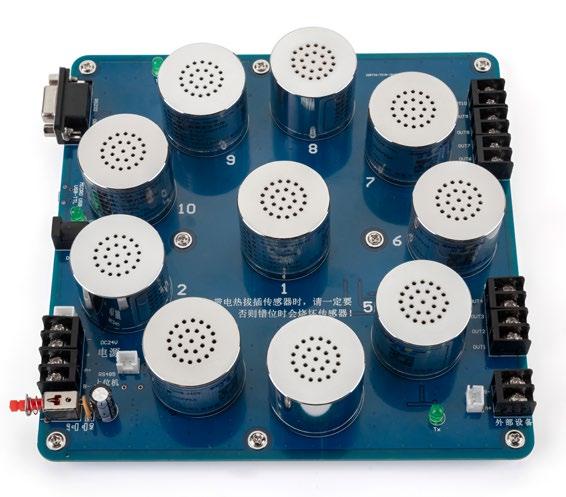

The Induskey SGA-ZHB-10 is a standardized, modular ten-channel signal conversion board launched for multi-gas detection needs such as odor electronic noses and special pollutant factor monitoring. The user freely combines 1 to 10 target gases — with no restriction on gas type, measuring range, or sampling method — and the board outputs all channels over RS485, RS232, 4-20mA, and USB-to-TTL serial interfaces. Built-in smart sensing technology makes every gas module plug-and-play with automatic recognition.
The board accommodates smart sensor modules of different detection principles and works with imported original sensors for stable performance, high accuracy, and strong stability. Diffusion and pump-suction sampling are both supported with a unified sampling approach, and the board operates from a wide DC 24V (12-30V) supply on an intrinsically safe circuit.
Deployed either in mobile monitoring or fixed online monitoring stations, the 180 × 180 mm board is integrated into the customer's own instruments. One single integration enables the later integrated monitoring of thousands of target gases: unified pin positioning, unified output signals, and a unified usage method mean gas configurations can be expanded or changed without redesign — solving rapid productization of multi-gas monitoring equipment for OEM customers.
2. System Architecture
The SGA-ZHB-10 operates as a fully integrated ten-channel signal acquisition and aggregation unit with the following core components:
-
Ten Smart Sensor Sockets: Accepts 1-10 smart gas sensor modules for different target gases in any combination — no restriction on gas type, measuring range, or sampling method.
-
Multi-Signal Output Unit: Outputs all channels over RS485, RS232, 4-20mA, and USB-to-TTL serial interfaces — covering both analog and digital integration with the customer's host system.
-
Sampling System: Diffusion or pump-suction sampling supported under a unified sampling approach.
-
Wide Power Input: DC 24V with free operation anywhere within 12-30VDC.
-
Intrinsically Safe Circuit: Ensures safe, reliable operation when integrated into customer instruments and monitoring stations.
-
Unified Module Standard: All gas modules share unified pin positioning, unified output signals, and a unified usage method for any gas.
-
Smart Recognition System: Every gas module is plug-and-play with automatic recognition — no manual configuration required.
3. Key Features & Competitive Advantages
A. Ten-in-One Gas Detection
B. One Integration, Thousand-Gas Expansion
C. Rich Signal Outputs
-
RS485, RS232, 4-20mA, and USB-to-TTL serial outputs cover both analog and digital integration.
-
Direct compatibility with PLCs, DCS systems, data loggers, and environmental monitoring platforms.
D. Unified Pin, Signal & Usage Design
-
Unified pin positioning, unified output signals, and a unified usage method for any gas.
-
Simplifies integration and makes later maintenance and module replacement effortless.
E. Mobile & Online Dual Use
F. Intrinsically Safe, Wide 12-30VDC Supply
-
Intrinsically safe circuit design for safe, reliable operation.
-
Powered at DC 24V with free operation anywhere within 12-30VDC.
G. Premium Imported Sensors, Multi-Principle
-
Imported original sensors ensure stable performance, high accuracy, and strong stability.
-
Compatibility with different sensing principles keeps monitored values stable across all channels.
4. Technical Specifications
5. Applications
The Induskey SGA-ZHB-10 is engineered for versatile integration across advanced multi-gas monitoring and electronic nose development scenarios:
-
Odor Electronic Nose (E-Nose): Multi-sensor array for artificial olfaction systems in environmental odor assessment, food quality control, and industrial emission characterization.
-
Special Pollutant Factor Monitoring: Custom multi-gas analysis for specific industrial pollutants, hazardous air pollutants (HAPs), and trace contaminant detection.
-
Mobile Multi-Gas Monitoring: Vehicle-mounted or portable multi-parameter atmospheric analyzers for emergency response and field surveys.
-
Fixed Online Monitoring Stations: Continuous emission and ambient air quality monitoring stations for regulatory compliance.
-
Multi-Gas OEM Equipment Integration: Ready-made ten-channel acquisition front end for environmental and analytical instrument manufacturers.
-
Serial Data Acquisition Front Ends: Unified multi-channel output for connection to government environmental data platforms and industrial SCADA systems.
6. Host System & Optional Cloud Platform Integration
To maximize operational flexibility, the SGA-ZHB-10 seamlessly integrates with host systems and the optional Induskey industrial IoT Cloud Platform via standardized serial and analog outputs.
-
Real-Time Multi-Channel Data Acquisition: RS485, RS232, 4-20mA, and USB-to-TTL outputs enable direct connection to data acquisition systems, environmental monitoring platforms, PLCs, and microcontrollers for real-time monitoring of up to ten gas concentrations simultaneously.
-
Multi-Node Network Integration: RS485 Modbus protocol supports multi-drop networking of multiple SGA-ZHB-10 boards, facilitating centralized odor and pollutant monitoring across distributed monitoring stations and industrial sites.
-
Alarm & Control Logic: 4-20mA analog and digital serial signals enable integration with alarm controllers, automated sampling systems, and process control interlocks for multi-gas safety and compliance.
-
Cloud Platform Uplink: When connected to a host gateway, aggregated measurement data from all ten channels can be uploaded to the Induskey IoT Cloud Platform for remote monitoring, historical trending, regulatory reporting, odor fingerprint analysis, and alarm notification via PC and mobile APP.
