1. Product Overview

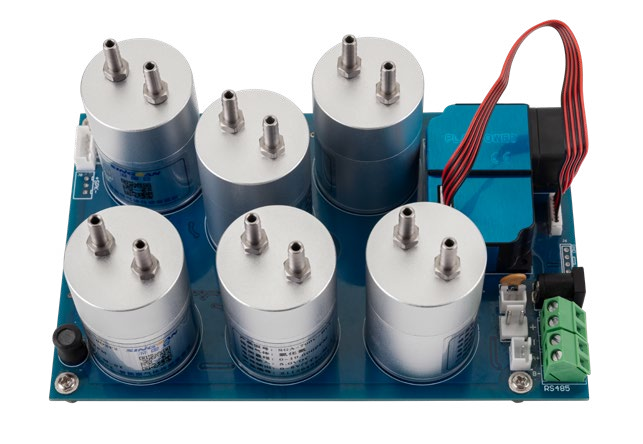

The Induskey SGA-100X is an intelligent, standardized, and modular multi-parameter environmental monitoring module series, launched for multi-gas detection needs in micro air monitoring stations, odor online monitoring, chemical industry parks, and factory boundary monitoring. Two board versions are offered: the six-gas dust module (small) supporting 1-6 target gases, and the ten-gas dust module (large) supporting up to 10 gases — both expandable with PM2.5, PM10, temperature, and humidity indicators.

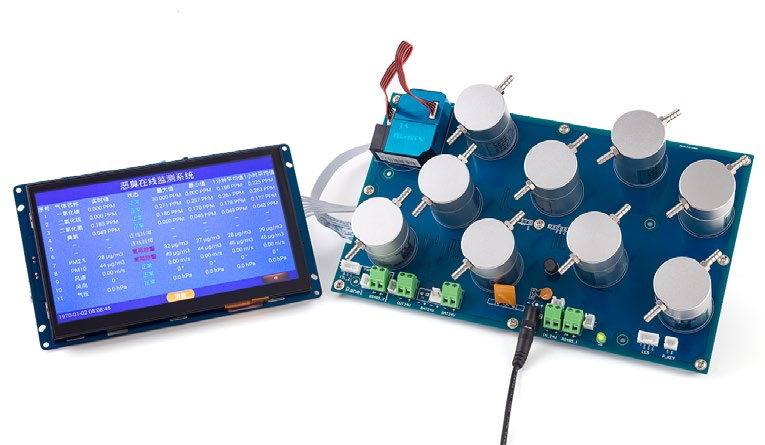

Powered at 12-30V with a standard RS485-RTU output, the module carries built-in smart sensing technology and patented algorithms; all smart gas sensor modules are plug-and-play with automatic recognition. Imported original four-electrode gas sensors — compatible with electrochemical, infrared, catalytic combustion, and PID principles — provide high resolution, low detection limits, and stable data at low maintenance cost. An optional large LCD screen displays gas name, unit, and live concentration in real time, with data storage, calibration, parameter setting, historical query, curve generation, and system reset functions.
Embedded into the customer's monitoring stations and instruments, the module solves the high entry barrier and uncontrollable quality problems of the micro air station and odor monitoring industries: one integration covers more than 1,000 combustible, toxic, and volatile gases, and the sensor-integrated gas chamber allows diffusion or pump-suction sampling at the monitoring point.
2. System Architecture
The SGA-100X operates as a fully integrated multi-parameter environmental monitoring platform with the following core components:
-
Modular Smart Sensor Array: 1-6 gases (small board) or 1-10 gases (large board) in any combination. All smart gas sensor modules are plug-and-play with automatic recognition.
-
Dust & Meteorological Sensor Expansion (Optional): PM2.5, PM10, temperature, and humidity indicators can be added to the gas monitoring configuration.
-
Signal Processing & Output Unit: Standard RS485-RTU output with open communication protocol, simplifying data integration, upload, and secondary development.
-
Optional HD Color LCD: Displays gas name, unit, and live concentration in real time. Supports data storage, calibration, parameter setting, historical query, curve generation, and system reset.
-
Sensor-Integrated Gas Chamber: Allows diffusion or pump-suction sampling at the monitoring point without external sampling hardware.
-
Power Input: 12-30VDC wide-range supply.
-
Intrinsically Safe Circuit: Ensures safe, reliable operation when embedded into monitoring stations and OEM instruments.
3. Key Features & Competitive Advantages
A. Flexible Gas + Dust Parameter Configuration
-
1-6 gases (small board) or 1-10 gases (large board) in any combination.
-
Expandable with PM2.5, PM10, temperature, and humidity indicators.
-
Gases and ranges customized to order, ready to deploy.
B. Plug-and-Play Smart Modules with Auto Recognition
-
Intelligent plug-in gas module design with automatic sensor recognition.
-
Unified module size, signal, and usage method make integration and later maintenance effortless.
C. Premium Imported Four-Electrode Sensors
-
Imported original four-electrode gas sensors deliver stable performance, high resolution, and low detection limits.
-
Compatible with electrochemical, infrared, catalytic combustion, and PID principles.
D. Standard RS485-RTU & Open Protocol
-
Powered at 12-30V with standard RS485-RTU output and an open communication protocol.
-
Simplifies data integration, upload, and secondary development.
E. Optional HD Color LCD with Patented Algorithms
-
The optional large screen shows gas name, unit, and live concentration in real time.
-
Supports data storage, calibration, parameter setting, historical query, curve generation, and system reset.
F. Factory-Calibrated with Temperature Compensation
G. One Integration for 1,000+ Gases, Safety-Ready
-
A single integration covers more than 1,000 combustible, toxic, and volatile gases.
-
Intrinsically safe circuit, freely settable high/low alarm points.
-
Sensor-integrated gas chamber for diffusion or pump-suction sampling.
4. Technical Specifications
5. Applications
The Induskey SGA-100X is engineered for versatile deployment across environmental monitoring and multi-parameter atmospheric analysis:
-
Micro Air Monitoring Stations: Compact multi-gas and particulate monitoring for urban air quality networks and smart city infrastructure.
-
Odor Online Monitoring: Multi-sensor array for continuous odor assessment at waste treatment facilities, agriculture sites, and industrial boundaries.
-
Chemical Industry Parks: Comprehensive boundary monitoring of toxic, combustible, and VOC emissions in chemical manufacturing zones.
-
Factory Boundary Monitoring: Regulatory compliance and environmental protection perimeter monitoring for industrial facilities.
-
Multi-Parameter OEM Instruments: Ready-made modular core for environmental instrument manufacturers developing custom analyzers.
-
Environmental Data Acquisition: Standardized RS485-RTU output for direct integration into government environmental data platforms and SCADA systems.
6. Host System & Optional Cloud Platform Integration
To maximize operational flexibility, the SGA-100X seamlessly integrates with host systems and the optional Induskey industrial IoT Cloud Platform via RS485-RTU and open protocol.
-
Real-Time Multi-Parameter Data Acquisition: Standard RS485-RTU output enables direct connection to data loggers, environmental monitoring platforms, PLCs, and microcontrollers for real-time monitoring of gas concentrations, particulates, and meteorological parameters.
-
Multi-Node Network Integration: RS485 Modbus RTU protocol supports multi-drop networking of multiple SGA-100X modules, facilitating centralized air quality and odor monitoring across distributed micro stations and industrial sites.
-
Alarm & Control Logic: Freely settable high/low alarm points enable integration with alarm controllers, automated ventilation systems, and process control interlocks for multi-gas safety and regulatory compliance.
-
Cloud Platform Uplink: When connected to a host gateway, measurement data from all gas, dust, and meteorological channels can be uploaded to the Induskey IoT Cloud Platform for remote monitoring, historical trending, regulatory reporting, odor fingerprint analysis, and alarm notification via PC and mobile APP.
