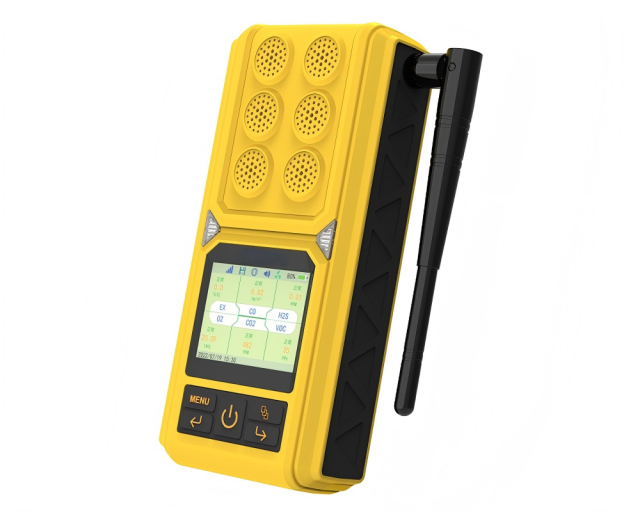

Induskey INK152 Series Portable Multi-Gas Detector

Product Overview

The Induskey INK152 is a professional-grade, intrinsically safe multi-gas detector designed for high-precision monitoring in the most demanding industrial environments. Building on over a decade of gas detection expertise, the INK152 integrates advanced wireless transmission technology with a robust, ergonomic handheld design. It serves as a comprehensive safety solution, combining real-time monitoring, intelligent alarming, and IoT connectivity into a single, compact device.

Engineered for versatility, the INK152 allows for the customized combination of 1 to 6 sensors, supporting over 1,000 types of combustible, toxic, and volatile organic compound (VOC) gases. Whether utilizing high-performance internal sampling pumps or natural diffusion, the INK152 delivers rapid response times and laboratory-grade accuracy. Its rugged construction and intelligent life-cycle management system make it the premier choice for international B2B markets focused on personnel safety and environmental compliance.

Key Features

• Fully Customizable Configuration: Supports 1-6 gases in any combination, with no limits on gas type or measurement range.


• Advanced Sensor Technology: Compatible with Electrochemical, Infrared (IR), Catalytic Bead, Photoionization (PID), and Semiconductor sensors.


• High-Resolution Display: Features a 2.4-inch HD color LCD screen for clear visualization of concentrations, units, and device status.


• Intelligent Sampling: Built-in high-performance pump with 10 adjustable flow rate levels (400-600 CC/Min) or diffusion-based sampling.


• Robust Battery Life: 5000mAh ultra-capacity lithium battery providing over 20 hours of continuous operation.


• Comprehensive Data Management: Internal storage for 100,000+ data points with USB export to Excel; optional IoT platform for real-time remote monitoring via PC or mobile.


• Enhanced Safety Protocols: Includes audible, visual, and vibration alarms, plus a "Man-Down" fall alarm to notify colleagues during emergencies.


• Durable Design: IP66-rated protection and a high-strength ABS/Aluminum alloy housing designed for drop and shock resistance.



Technical Specifications

Applications and Industries

The INK500 is specifically engineered for critical safety monitoring in hazardous environments:

• Confined Space Entry: Ideal for tunnels, manholes, sewers, and underground pipe galleries.


• Oil & Gas / Petrochemical: Monitoring for leaks in refineries and processing plants.


• Mining & Heavy Industry: Detecting methane and toxic gases in coal mines or smelting operations.


• Environmental Protection: High-sensitivity detection (PPB level) for VOCs and atmospheric pollutants.


• Emergency Response: Rapid leak detection and safety assessment for fire and rescue teams.



Compliance and Certifications

• Explosion Protection: Certified to Ex ib II C T4 Gb standards for hazardous locations.


• Performance Standards: Compliant with international occupational exposure limits and gas detection norms (GB/T, ISO-equivalent).


• Quality Assurance: Built under strict ISO9001 quality management systems.

Ordering Information

The INK500 series is built-to-order based on your specific atmospheric requirements. Please specify the following when ordering:

1. Sampling Method: Diffusion or Internal Pump.
2. Gas Sensors: Select 1 to 6 target gases and their required ranges.
3. Optional Modules: * IoT Wireless Transmission (Mobile/PC Monitoring).



• External High-Efficiency Dust Filter (For high-particulate environments).


• Temperature and Humidity Sensors.


• Pressure Monitoring Module.



Standard Package Includes:

• INK500 Main Unit
• Aluminum Carry Case


• Micro USB Charging Cable & Adapter
• Calibration Cap/Tubing
• User Manual & Calibration Certificate
