1. Product Overview

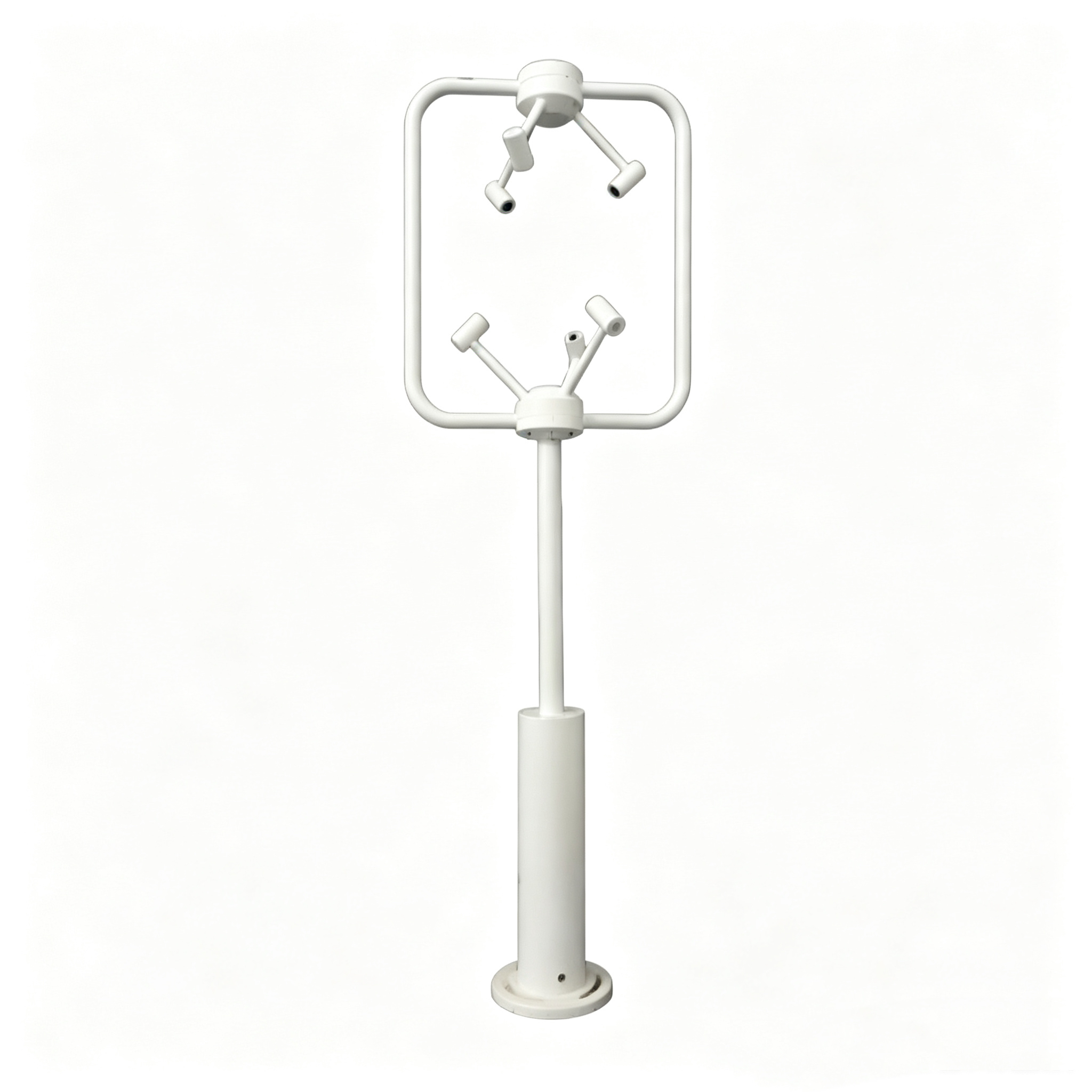

The IndusKey INK448 is a 3D Ultrasonic Wind Direction and Speed Sensor that represents a significant advancement in wind measurement technology. It features a compact and robust structure with no moving parts, ensuring high durability and reliability. The sensor is capable of measuring both horizontal and vertical wind direction, as well as wind speed and X/Y/Z-axis wind velocities. It operates continuously in all environments and weather conditions, providing reliable data for meteorological monitoring and various other fields that require detailed wind information.
2. Sensing Technology & Self-Cleaning System
Sensing Technology:
The INK448 utilizes ultrasonic technology to measure wind parameters in three dimensions. By transmitting and receiving ultrasonic pulses between multiple transducers arranged in a 3D array, the sensor can accurately detect wind speed and direction not only in the horizontal plane but also vertically. This allows it to capture complex wind patterns, including updrafts and downdrafts, which is crucial for advanced applications. The lack of moving parts inherent in ultrasonic technology contributes to its high stability and low maintenance requirements.
Robust & Low-Maintenance Design:
While a specific self-cleaning system is not detailed, the INK448 is engineered for reliable operation in harsh conditions. It is designed for all-weather operation and remains unaffected by rain, ice, snow, or frost. This inherent resistance to environmental elements means that the sensor's performance is not compromised by build-up on its surfaces, effectively eliminating a common maintenance issue. The robust and corrosion-resistant construction further ensures longevity and reliable performance in demanding environments, reducing the need for frequent maintenance or cleaning.
3. Key Features & Competitive Advantages
- 3D Wind Measurement: Unlike traditional 2D sensors, the INK448 measures horizontal wind direction, vertical wind direction, and X/Y/Z-axis wind velocities, providing a complete picture of the wind field.
- All-Weather Reliability: Its operation is unaffected by rain, ice, snow, or frost, ensuring accurate and continuous data capture in the most challenging weather conditions.
- High Measurement Accuracy & Stability: The sensor delivers high accuracy and stable performance, which is essential for precise meteorological and scientific applications.
- Robust and Corrosion-Resistant: The construction is designed to withstand harsh environments, making it suitable for long-term deployment in both land and marine settings.
- Lightweight and Portable: Its compact and lightweight design allows for simple installation and easy removal, offering flexibility for temporary or mobile monitoring setups.
4. Technical Specifications
| Parameter |
Horizontal Wind Direction |
Vertical Wind Direction |
Wind Speed / X / Y / Z-Axis Speed |
| Measurement Principle |
Ultrasonic |
Ultrasonic |
Ultrasonic |
| Measurement Range |
0 - 359.9° |
-90° - 90° |
0 - 70 m/s |
| Unit |
degrees |
degrees |
m/s |
| Resolution |
0.1° |
0.1° |
0.1 m/s |
| Accuracy |
±2° |
±2° |
±0.2 m/s (0-5 m/s); <2% of reading (>5 m/s) |
5. Applications
- Advanced Meteorological Research: It is used for studying complex atmospheric phenomena, including turbulence, boundary layer dynamics, and wind shear.
- Aerodynamics and Wind Engineering: The sensor is ideal for wind tunnel testing and full-scale monitoring of buildings, bridges, and other structures to assess wind loads and effects.
- Renewable Energy: It provides detailed wind resource assessment for wind farm development and is used for optimizing the performance of wind turbines by understanding complex wind flows.
- Aviation and UAV Operations: The 3D wind data is crucial for ensuring the safety of aircraft during takeoff and landing, and for planning and executing drone (UAV) missions.
- Sports Science: It is used in sports like sailing, rowing, and track and field to analyze the effect of wind on athletic performance.
- Environmental Monitoring: The sensor can be used to study air dispersion patterns and the spread of pollutants in complex urban or industrial environments.
