1. Product Overview

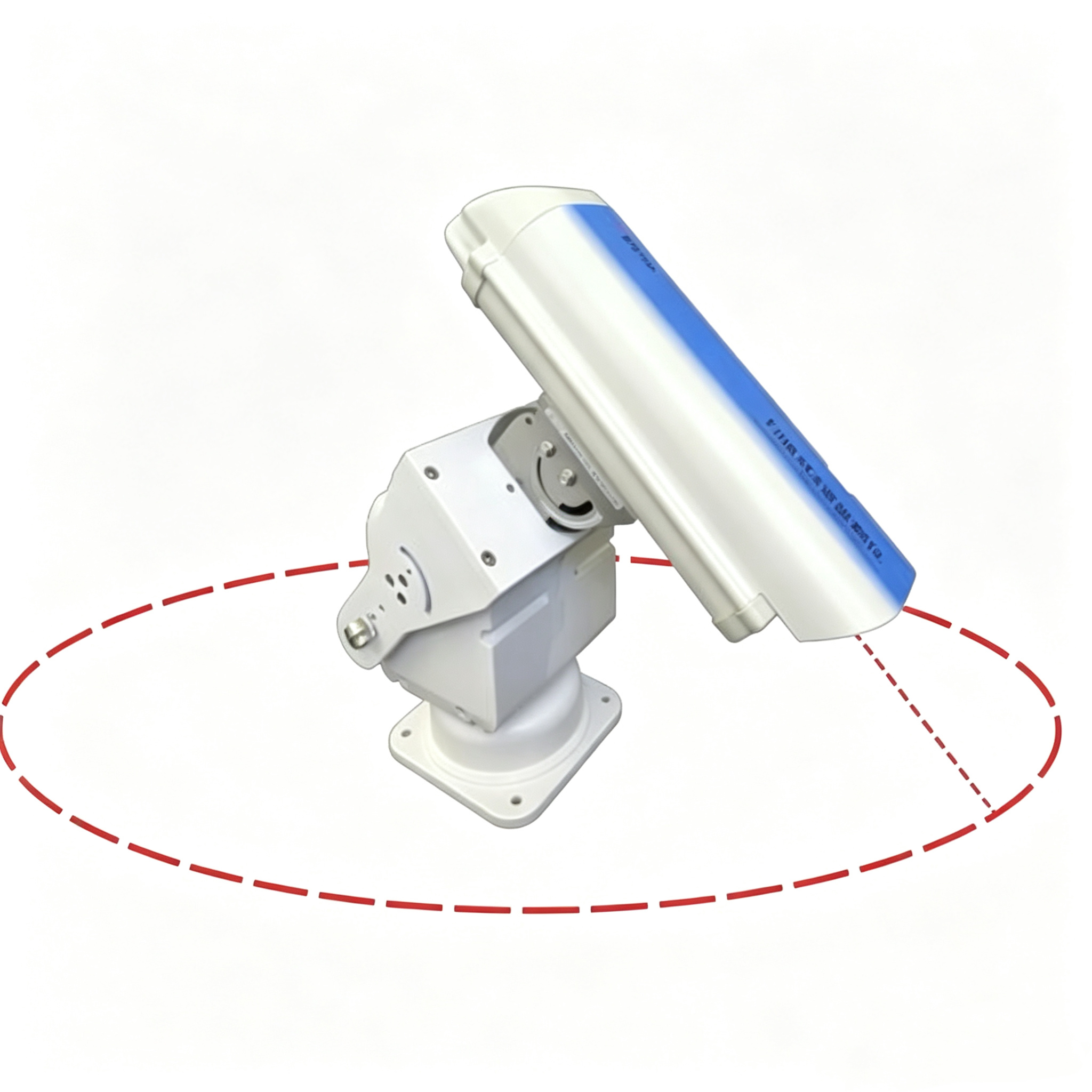

The IndusKey INK442 is a fully dynamic snow depth measuring instrument, developed from years of testing experience. It is designed to address the inaccuracies of traditional static single-point measurements by enabling multi-point, large-area dynamic testing with averaged results for greater precision. This makes it the most advanced measurement method currently available. The instrument integrates precision mechanical transmission, sensor technology, computer control, wireless network communication, and cloud platform software. It is built for fully autonomous operation in all outdoor environments, boasting robust IP65 protection.
2. Sensing Technology & Self-Cleaning System
Sensing Technology:
The INK442 employs a laser distance measurement method for snow depth, with a range of up to 20 meters. Its core technology is dynamic scanning, which allows it to perform up to 180 measurements per point automatically, without manual involvement. This multi-point, large-area scanning capability provides averaged results, significantly improving precision compared to static single-point sensors. The instrument features a vertical scan angle of 0-90° and a horizontal scan angle of 0-360°, enabling comprehensive coverage of the monitored area.
Robust & Low-Maintenance Design:
While a specific self-cleaning system is not detailed, the INK442 is engineered for reliability in harsh outdoor conditions. It holds an IP65 protection class, signifying a high level of resistance against dust and water jets, which inherently reduces fouling and the need for frequent cleaning. The housing is made of anodized aluminum alloy, a durable material that resists corrosion and physical damage. Additionally, the instrument features an integrated automatic temperature control system to ensure accurate measurements even in extreme cold, further contributing to its low-maintenance and dependable operation.
3. Key Features & Competitive Advantages
- Dynamic Scanning & High Precision: Unlike traditional static sensors, the INK442 performs dynamic, multi-point scanning over a large area. This results in averaged, more accurate data, solving the problem of inaccuracy associated with single-point measurements on uneven snow surfaces.
- High Level of Automation: The instrument can automatically perform up to 180 measurements per point and features an auto-zero return function after each patrol to recalibrate the zero position. This high degree of automation minimizes the need for manual intervention.
- Flexible and Configurable: It offers configurable snow depth alarm thresholds, allowing users to set specific alerts based on their operational needs.
- Comprehensive Communication Options: The INK442 supports multiple output formats including RS485, GPRS, WIFI, and RJ45, ensuring seamless integration with various data acquisition systems and cloud platforms.
- Enhanced Safety and Reliability: It uses a safer laser beam that poses no harm to operators and remains unaffected by the surrounding environment. The integrated temperature control ensures stable performance in extreme cold, from -40°C to +60°C.
4. Technical Specifications
| Parameter |
Value |
| Monitoring Parameters |
Instantaneous snow depth, average snow depth (optional: point temperature, ambient T&H; GPS coordinates) |
| Power Supply |
DC 12 V or AC 220 V |
| Power Consumption |
15 W (with heating); <8 W (without heating) |
| Resolution |
1 mm |
| Snow Depth Range |
0 - 20 m |
| Accuracy |
≤±3 mm |
| Output format |
RS485, GPRS, WIFI, RJ45, etc. |
| Communication Protocol |
Standard Modbus |
| Housing |
Anodized aluminum alloy |
| Protection Class |
IP65 |
| Operating Temperature |
-40 °C ~ +60 °C |
| Operating Humidity |
0 ~ 100 %RH |
| Weight |
<15 kg |
| Vertical Scan Angle |
0 ~ 90° |
| Horizontal Scan Angle |
0 ~ 360° |
| Scan Radius |
30 m |
| Auto-Scan Accuracy |
≤±0.5° over 4 hours |
| Scan Rate |
50°/sec |
| Auto Zero Return |
After each patrol, auto-zeros to calibrate the zero position |
5. Applications
- Airport Runway Monitoring: Its large-area scanning capability is ideal for monitoring entire runways and taxiways, providing detailed snow cover maps for efficient and targeted winter maintenance.
- Ski Resort Management: The system can be used to map snow depth across entire slopes, ensuring optimal grooming and safety for skiers.
- Road and Railway Networks: It can monitor snow accumulation on critical sections of highways and railway lines, providing early warnings for avalanche risks or the need for snow removal.
- Large Open Areas: Suitable for monitoring snow cover on sports fields, industrial sites, or large parking lots to facilitate efficient snow clearing operations.
- Meteorological and Hydrological Research: The high-precision, large-area data collected by the INK442 is valuable for climate research and hydrological modeling, providing a more accurate picture of snowpack dynamics over a wide area.
