1. Product Overview

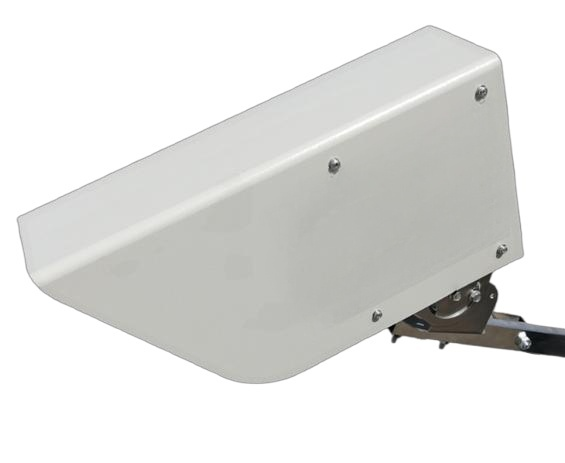

The Induskey INK424 is a non-contact laser remote sensing road-surface temperature monitoring device. Using infrared laser remote sensing technology, the sensor measures road surface temperature without the need for road cutting or lane closure. Housed in a waterproof, corrosion-proof metal enclosure, the INK424 delivers accurate data across a wide range of weather conditions, enabling road management authorities to take preventive measures before safety hazards occur. The sensor can be permanently mounted on a roadside pole for long-term monitoring, or deployed on a vehicle for mobile testing applications. With ultra-low power consumption below 1W and dual power input options, the INK424 is ideal for both grid-connected and solar-powered remote installations.
2. System Architecture
The INK424 operates as a fully integrated infrared road temperature sensing unit with the following core components:
-
Infrared Laser Emitter: Directs an infrared laser beam at the road surface from the roadside-mounted sensor head.
-
Optical Receiver & Signal Analyzer: Captures reflected infrared signals and analyzes them to determine road surface temperature with high accuracy.
-
Signal Processing Unit: Calculates temperature values with ±0.5°C accuracy and 0.1°C resolution across the full -40°C ~ +80°C range.
-
RS485 Communication Module: Reliable wired digital output for integration into existing highway automatic weather monitoring networks.
-
Optional Wireless Module: Cloud platform access via PC or mobile for remote data monitoring.
-
IP66 Sealed Enclosure: Waterproof, corrosion-proof metal housing protecting optical components from rain, dust, and corrosive environments.
-
Power Management Unit: DC 12V or AC 220V dual-input with <1W consumption for flexible site configuration.
3. Key Features & Competitive Advantages
A. Non-Embedded Installation
B. Fixed or Mobile Deployment
C. High Accuracy
D. Wide Temperature Range
E. Ultra-Low Power Consumption
F. Dual Power Input
G. Flexible Sampling
H. RS485 Digital Output
I. Optional Wireless Communication
J. Rugged & Corrosion-Resistant
-
Aesthetic, durable construction; salt-fog and corrosion resistant for coastal use.
-
IP66 sealed metal enclosure for reliable long-term unattended operation.
K. Compact & Lightweight
L. All-Weather Design
4. Technical Specifications
| System Parameter |
Specification |
| Measurement Performance |
|
| Measurement Range |
-40 °C ~ +80 °C |
| Measurement Accuracy |
±0.5 °C |
| Resolution |
0.1 °C |
| System Configuration |
|
| Sampling Interval |
1 ~ 60 min (configurable) |
| Communication Output |
RS485 |
| Optional Wireless |
Cloud platform via PC / mobile |
| Power Consumption |
<1 W |
| Operating Voltage |
DC 12 V or AC 220 V |
| Physical & Environmental |
|
| Enclosure Dimensions |
380 × 290 × 110 mm |
| Weight |
<2.5 kg |
| Operating Temperature |
-40 °C ~ +80 °C |
| Operating Humidity |
<100 %RH (non-condensing) |
| Enclosure Material |
Waterproof, corrosion-proof metal housing |
| Protection Class |
IP66; salt-fog and corrosion resistant |
| Mounting |
Roadside pole or vehicle-mounted |
5. Applications
The Induskey INK424 is engineered for versatile deployment across road infrastructure and environmental monitoring scenarios:
-
Highway Automatic Weather Stations: Core road surface temperature sensor for highway meteorological station networks.
-
Expressway Road Temperature Surveillance: Real-time pavement thermal monitoring for high-speed traffic corridors.
-
Bridge and Tunnel Thermal Monitoring: Critical temperature detection at structures prone to rapid ice formation and thermal gradients.
-
Coastal Road Maintenance: Salt-fog resistant design ideal for marine and coastal highway environments.
-
Winter Road Ice Warning Systems: Early detection of pavement cooling approaching freezing point for proactive salting and traffic advisory.
-
Urban Heat Island Observation: Pavement temperature monitoring for urban climate research and heat island effect assessment.
6. Optional Cloud Platform
To maximize operational oversight, the INK424 seamlessly integrates with the optional Induskey industrial IoT Cloud Platform via wireless communication module.
-
Real-Time Remote Dashboard: Operators can access road surface temperature data remotely via PC or mobile to directly read temperature values, monitor equipment operational status, and analyze thermal trends.
-
Multi-Site Centralized Management: Enables GPS positioning of multiple road temperature sensors across highway networks, bridge portfolios, or urban observation grids, facilitating data-driven intelligent road management.
-
Alarm Notification: Supports programmable threshold alarms for critical temperature conditions (approaching 0°C freezing point, extreme high temperatures) configured to automatically dispatch notifications to traffic control and maintenance centers via SMS and email.
-
Data Export & Reporting: Generates continuous historical temperature curves and operational logs for winter maintenance efficiency analysis, pavement thermal performance assessment, traffic safety reporting, and climatological research.
