1. Product Overview

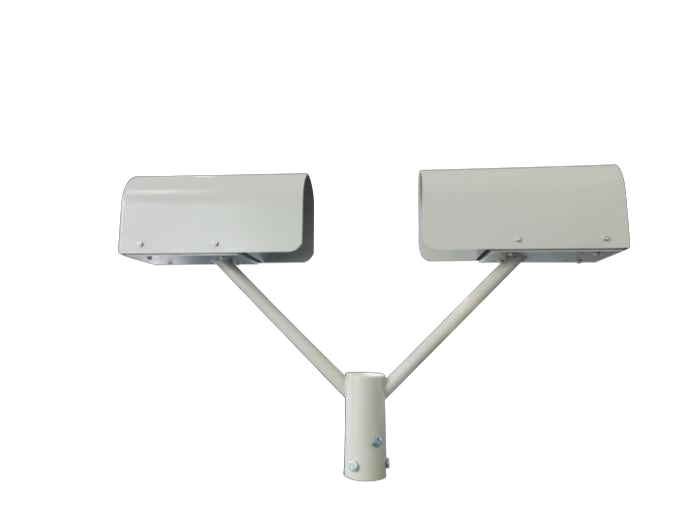

The Induskey INK420 Weather Phenomenon Instrument is a high-precision precipitation detection device developed to international WMO (World Meteorological Organization) observation standards. Utilizing advanced laser diode technology at 780nm wavelength, it identifies all forms of rain and snow with precision exceeding traditional rain gauges. The instrument detects eight distinct precipitation types — from drizzle to hail — with auto-recognition accuracy exceeding 97% of manual observation. Designed for unattended operation in harsh outdoor environments, the INK420 is the instrument of choice for professional meteorological observation, road weather monitoring, and airport weather warning systems.
2. System Architecture
The INK420 operates as a fully integrated precipitation detection unit with the following core components:
-
780nm Laser Diode Transmitter: Directs a laser beam across the 180 × 30 mm measurement area (54 cm²).
-
Optical Receiver: Captures scattered and attenuated light signals as precipitation particles pass through the laser beam.
-
High-Speed Signal Processor: Analyzes particle diameter, velocity, and optical properties to classify each particle into one of eight recognized precipitation types.
-
Heating Module: Integrated auto-heating system (50W/100W) for harsh outdoor environments to prevent ice formation on optical surfaces.
-
EMC Protection Unit: EN61000-4-2/4/5/6 compliant with integrated power and signal surge protection.
-
Output Interface: Standardized codes compliant with WMO 4688/4677 (SYNOP), 4678 (METAR), and NWS code tables for seamless international meteorological integration.
-
Corrosion-Resistant Enclosure: Aluminum alloy housing with IP65 (enclosure) / IP67 (sensor seal) protection.
3. Key Features & Competitive Advantages
A. Automatic Weather Monitoring
B. 8-Type Precipitation Recognition
-
Auto-classifies: drizzle, rain, rain+snow, snow, snow grains, freezing rain, hail.
-
97% auto-recognition accuracy versus manual observation for rain, snow, hail, and freezing rain.
C. WMO Standard Output
-
SYNOP (4688/4677), METAR (4678), and NWS code table compliance.
-
Enables seamless integration into international meteorological networks and airport reporting systems.
D. Wide Particle & Intensity Range
-
Liquid particle diameter: 0.2–5 mm; solid particle diameter: 0.2–25 mm.
-
Particle velocity: 0.2–20 m/s.
-
Rain intensity: 0.001–1,200 mm/h with ±5% accuracy (liquid), ±20% (solid).
E. Maintenance-Free Laser Technology
F. Lightning & Heating Protection
G. IP67 Sealed Protection
H. Low Power Consumption
I. Rugged Construction
-
Corrosion-resistant aluminum alloy housing.
-
Weight ~10 kg; dimensions L 750 × H 175 × W 250 mm.
-
EMC Protection: EN61000-4-2/4/5/6 (4 kV, 10 V/m).
J. Precipitation Enhancement Assessment
4. Technical Specifications
| System Parameter |
Specification |
| Measurement Performance |
|
| Precipitation Types |
8 types: drizzle, rain, rain+snow, snow, snow grains, freezing rain, hail |
| Recognition Accuracy |
>97% (rain, snow, hail, freezing rain vs. manual) |
| Particle Diameter (Liquid) |
0.2 ~ 5 mm |
| Particle Diameter (Solid) |
0.2 ~ 25 mm |
| Particle Velocity |
0.2 ~ 20 m/s |
| Rain Intensity Range |
0.001 ~ 1,200 mm/h |
| Rain Intensity Accuracy |
±5% (liquid); ±20% (solid) |
| Optical & Physical |
|
| Optical Sensor |
Laser diode, 780 nm wavelength |
| Measurement Area |
180 × 30 mm (54 cm²) |
| System Configuration |
|
| Report Output |
WMO 4688/4677 (SYNOP), 4678 (METAR), NWS |
| Power Supply |
DC 24 V (60 mA @ 1.5 W typical) |
| Heater Power |
50 W (4 A @ 12 V) / 100 W (4 A @ 24 V) |
| EMC Protection |
EN61000-4-2/4/5/6 (4 kV, 10 V/m) |
| Enclosure & Environment |
|
| Enclosure Material |
Corrosion-resistant aluminum alloy |
| Dimensions |
L 750 × H 175 × W 250 mm |
| Weight |
~10 kg |
| Protection Class |
IP65 (enclosure), IP67 (sensor seal) |
5. Applications
The Induskey INK420 is engineered for versatile deployment across meteorological and transportation infrastructure:
-
Highway Automatic Weather Stations: Precipitation type and intensity monitoring for road weather warning systems.
-
Airport METAR/SYNOP Observation: WMO-compliant precipitation reporting for aviation weather services and flight safety.
-
Meteorological Observation Networks: National and regional weather service stations requiring standardized precipitation data.
-
Road Weather Warning Systems: Real-time precipitation detection for variable speed limits and traffic advisory systems.
-
Precipitation Enhancement Evaluation: Artificial weather modification program assessment and effectiveness analysis.
-
Rain Radar Calibration Stations: Ground-truth precipitation measurement for weather radar validation and calibration.
6. Optional Cloud Platform
To maximize operational oversight, the INK420 seamlessly integrates with the optional Induskey industrial IoT Cloud Platform.
-
Real-Time Remote Dashboard: Operators can wirelessly upload precipitation data to directly read precipitation type, intensity, particle diameter/velocity metrics, and monitor equipment operational status remotely.
-
Multi-Site Centralized Management: Enables GPS positioning of multiple weather phenomenon instruments across highway networks, airport perimeters, or meteorological station portfolios, facilitating data-driven intelligent weather management.
-
Alarm Notification: Supports programmable threshold alarms for severe precipitation events (heavy rain, hail, freezing rain) configured to automatically dispatch notifications to traffic control, airport operations, and meteorological centers via SMS and email.
-
Data Export & Reporting: Generates continuous historical precipitation curves and operational logs in WMO standard formats for meteorological research, climatological analysis, aviation compliance reporting, and traffic safety assessment.
