1. Product Overview

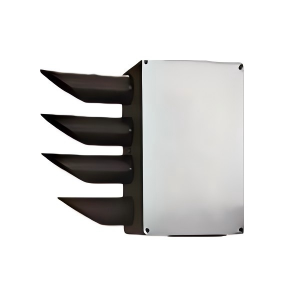

The Induskey INK418 is a professional non-contact road-surface state measuring instrument utilizing high-precision imported laser sensors with spectral measurement technology. Unlike conventional sensors limited to snowfall below 1 cm, the INK418 measures snow and ice thickness over an extended range — up to 1,500 mm snow depth and 2.00 mm ice/water layer thickness — providing reliable data for road clearing and maintenance operations such as de-icing agent dosage calculation. The sensor mounts roadside at 2–15 m distance with no lane closure or road damage required, making installation faster and simpler than embedded alternatives. A built-in infrared thermometer simultaneously measures road surface temperature, while the friction coefficient output enables quantitative slipperiness assessment for traffic safety management.
2. System Architecture
The INK418 operates as a fully integrated remote sensing road condition unit with the following core components:
-
High-Precision Imported Laser Emitter: Directs a laser beam at the road surface for spectral analysis of reflected signals.
-
Spectral Analysis Receiver: Analyzes reflected laser energy to quantify water film, ice layer, and snow accumulation thickness.
-
Built-In Infrared Thermometer: Measures road surface temperature simultaneously with optical condition detection.
-
Signal Processing Unit: Calculates friction coefficient (0–1.00) from surface condition data for slipperiness assessment.
-
Controller & Data Interface: Manages configurable sampling intervals (1–60 min) and communication output.
-
IP65 Sealed Enclosure: Salt-fog and corrosion-resistant housing for coastal and harsh environments.
-
Power Module: DC 12V operation with <3W standby / 30W active power consumption.
3. Key Features & Competitive Advantages
A. Non-Embedded Installation
-
No lane closure or road damage required during installation.
-
Faster, simpler roadside setup compared to in-pavement sensors.
B. Wide Remote Sensing Range
C. Multi-Parameter Detection
-
Integrated design detects water layer thickness, ice layer thickness, snow depth, and road condition state simultaneously.
-
Built-in infrared thermometer provides concurrent road surface temperature measurement.
D. High-Precision Laser Measurement
-
Snow depth: 0–1,500 mm with ±1 mm accuracy — far exceeding conventional 1 cm limits.
-
Ice/water layer: 0–2.00 mm with 0.01 mm resolution.
-
Road surface temperature: ±0.5°C accuracy.
E. Multiple Road State Identification
-
Detects dry, damp, wet, snow/frost, ice, and ice-water mixture conditions.
-
Friction coefficient range 0–1.00 (hazardous to dry) for quantitative slipperiness assessment.
F. Flexible Mounting Configuration
G. Rugged All-Weather Construction
-
Aesthetic, salt-fog and corrosion-resistant housing for coastal environments.
-
IP65-rated sealed enclosure.
-
Operating range: -40–80°C, <100%RH (non-condensing).
H. Low Power & Configurable Operation
-
<3W standby, 30W active power consumption at DC 12V.
-
Configurable 1–60 min acquisition interval adjustable per application requirements.
I. Network Compatibility
4. Technical Specifications
| System Parameter |
Specification |
| Measurement Performance |
|
| Water Layer Thickness |
0 ~ 2.00 mm; Resolution: 0.01 mm |
| Ice Layer Thickness |
0 ~ 2.00 mm; Resolution: 0.01 mm |
| Snow Thickness |
0 ~ 1,500 mm; Accuracy: ±1 mm |
| Road Condition States |
Dry, damp, wet, snow/frost, ice, ice-water mixture |
| Road Temperature Range |
-40 ~ 70 °C |
| Road Temperature Accuracy |
±0.5 °C; Resolution: 0.1 °C |
| Friction Coefficient |
0 ~ 1.00 (hazardous ~ dry) |
| System Configuration |
|
| Remote Sensing Distance |
2 ~ 15 m (installation distance) |
| Measurement Zone |
Ø20 cm at 10 m distance |
| Acquisition Interval |
1 ~ 60 min (configurable) |
| Power Supply |
DC 12 V |
| Power Consumption |
<3 W (standby); 30 W (active) |
| Physical & Environmental |
|
| Enclosure Dimensions |
430 × 340 × 120 mm |
| Weight |
<5 kg |
| Operating Temperature |
-40 ~ 80 °C |
| Operating Humidity |
<100 %RH (non-condensing) |
| Protection Class |
IP65; salt-fog and corrosion resistant |
5. Applications
The Induskey INK418 is engineered for versatile deployment across road infrastructure and winter maintenance operations:
-
Highway Automatic Weather Monitoring: Core road condition sensor for highway meteorological station networks.
-
Expressway Road Condition Surveillance: Real-time surface state monitoring for high-speed traffic corridors.
-
Bridge and Tunnel Approaches: Critical slipperiness detection at structures prone to rapid ice formation.
-
Coastal Road Maintenance: Salt-fog resistant design ideal for marine and coastal highway environments.
-
Airport Runway Condition Monitoring: Precision friction coefficient measurement for aviation safety and landing operations.
-
Winter Road Maintenance Dispatch: Data-driven de-icing agent dosage calculation and plowing resource allocation.
6. Optional Cloud Platform
To maximize operational oversight, the INK418 seamlessly integrates with the optional Induskey industrial IoT Cloud Platform.
-
Real-Time Remote Dashboard: Operators can wirelessly upload road condition data to directly read surface state values, ice/snow thickness, temperature, and friction coefficient metrics remotely.
-
Multi-Site Centralized Management: Enables GPS positioning of multiple road condition sensors across highway networks, airport perimeters, or bridge/tunnel portfolios, facilitating data-driven intelligent winter maintenance management.
-
Alarm Notification: Supports programmable threshold alarms for hazardous road conditions (ice formation, low friction coefficient, heavy snow accumulation) configured to automatically dispatch notifications to traffic control and maintenance dispatch centers via SMS and email.
-
Data Export & Reporting: Generates continuous historical road condition curves and operational logs for winter maintenance efficiency analysis, de-icing cost optimization, traffic safety reporting, and regulatory compliance.
