1. Product Overview

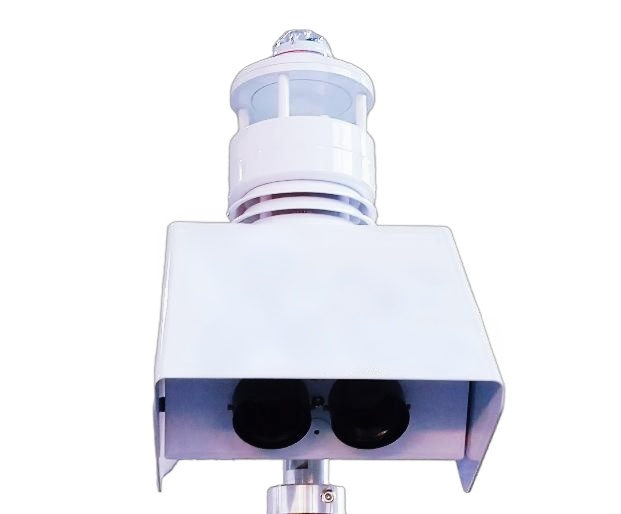

The Induskey INK412 is an integrated, all-in-one traffic meteorological monitoring instrument designed for highway and roadway deployment. Utilizing embedded systems, optical sensing, and digital electronics, the unit combines multiple sensors into a single compact enclosure to simultaneously monitor air temperature, relative humidity, wind speed and direction, precipitation, road surface conditions (dry, damp, wet, snow, ice, ice-water mixture), road surface temperature, and atmospheric pressure.
A built-in microcontroller integrates all sensors and communication interfaces at the circuit-board level. The device is specifically engineered for road traffic applications, offering plug-and-play installation on existing infrastructure such as lamp posts, monitoring poles, and gantries. Monitoring data is transmitted in real-time to the control center to support traffic management decisions and enable timely warnings under adverse weather conditions.
2. System Architecture
The INK412 operates as a fully integrated meteorological monitoring unit with the following core components:
-
Embedded Microcontroller: Integrates all sensors and communication interfaces at the circuit-board level for unified data processing and transmission.
-
Optical Spectral Analysis Module: Detects road surface states and quantifies water film, ice layer, and snow accumulation thickness.
-
Ultrasonic Wind Sensor: Measures wind speed and direction via time-difference method with GPS auto-alignment to true north.
-
Forward-Scatter Infrared Visibility Sensor: Determines atmospheric visibility based on the Koschmieder principle.
-
MEMS Environmental Sensor Array: Captures ambient temperature, humidity, and barometric pressure in real-time.
-
Precipitation Detection Module: Classifies rainfall intensity into six levels from light rain to torrential rain.
-
GPS Module: Provides remote positioning and automatic time calibration; ensures wind direction measurement aligns to true north.
-
Power & Communication Module: Supports DC 10–24V / AC 220V dual-input with optional solar panel; RS-485, RS-232, and GPRS wireless interfaces.
3. Key Features & Competitive Advantages
A. Integrated All-in-One Design
-
Compact form factor with unified structural design, small footprint, light weight, and streamlined appearance for minimal visual impact.
-
Combines multiple meteorological and road surface sensors in a single enclosure.
B. Multi-Parameter Road Surface Detection
-
Detects water, ice, snow states and layer thickness simultaneously.
-
Ice thickness measurement up to 2.00 mm, snow depth up to 10 mm, with 0.01 mm resolution.
-
Road condition accuracy >90% for dry, damp, wet, snow/frost, ice, and ice-water mixture states.
C. Ultra-Low Power Consumption
D. Plug-and-Play Deployment
-
Mounts on existing road infrastructure (lamp posts, monitoring poles, gantries).
-
No specialized tools required, reducing engineering cost and installation time.
E. GPS Auto-Orientation & Time Sync
F. Rugged All-Metal Enclosure
-
Powder-coated metal body, corrosion-resistant and anti-aging.
-
IP66 rated for long-term outdoor operation in harsh environments.
-
Shielded metal housing and embedded circuit design provide strong anti-interference capability for roadside electromagnetic environments.
G. Maintenance-Free Design
4. Technical Specifications
| System Parameter |
Specification |
| Meteorological Parameters |
|
| Air Temperature |
Range: -40 ~ 80°C; Accuracy: ±0.3°C; Resolution: 0.1°C |
| Relative Humidity |
Range: 0 ~ 100%RH; Accuracy: ±3% (≤80%), ±5% (>80%); Resolution: 0.1%RH |
| Wind Speed |
Range: 0 ~ 60 m/s; Accuracy: ±(0.3+0.03V) m/s; Resolution: 0.1 m/s |
| Wind Direction |
Range: 0 ~ 360°; Accuracy: ±3°; Resolution: 1° |
| Atmospheric Pressure |
Range: 300 ~ 1,100 hPa; Accuracy: ±0.3 hPa; Resolution: 0.1 hPa |
| Rainfall Classification |
No rain / Light / Moderate / Heavy / Rainstorm / Downpour / Torrential |
| Visibility |
Range: 0 ~ 5,000 m; Resolution: 1 m; Accuracy: ±50 m (≤500 m), ±10% (500 m < V ≤ 1,500 m), ±20% (> 1,500 m) |
| Road Surface Conditions |
|
| Ice Layer Thickness |
Range: 0 ~ 2.00 mm; Resolution: 0.01 mm |
| Snow Depth (Accumulation) |
Range: 0 ~ 10 mm; Resolution: 0.01 mm |
| Road Condition States |
Dry, Damp, Wet, Snow/Frost, Ice, Ice-Water Mixture; Accuracy: >90% |
| Road Surface Temperature |
Accuracy: ±0.5°C (-5 ~ 5°C), ±2°C (other ranges); Resolution: 0.1°C |
| System Configuration |
|
| GPS Function |
Remote positioning and automatic time calibration; wind direction auto-aligns to true north |
| Power Supply |
DC 10 ~ 24 V / AC 220 V (dual-input); Optional solar panel |
| Power Consumption |
≤6 W @ DC 12 V |
| Communication Interface |
RS-485 / RS-232 / GPRS wireless |
| Enclosure Rating |
IP66; Powder-coated metal body, corrosion-resistant |
| Operating Environment |
Air temperature: -40 ~ 80°C; Humidity: 0 ~ 100%RH |
| Mounting |
Compatible with lamp posts, monitoring poles, and gantry structures |
5. Applications
The Induskey INK412 is engineered for versatile deployment across traffic infrastructure and intelligent transportation scenarios:
-
Highway Automatic Weather Stations: Real-time meteorological monitoring for expressways and major arterial roads.
-
Urban Road Meteorological Monitoring: City road network weather condition surveillance and early warning systems.
-
Bridge and Tunnel Environment Surveillance: Critical infrastructure weather and road surface condition monitoring.
-
Intelligent Transportation Systems (ITS): Integrated data feed for smart traffic management and adaptive signal control.
-
Winter Road Maintenance Decision Support: Ice and snow detection for proactive salting, plowing, and traffic advisory operations.
-
Fog and Ice Warning Systems: Low-visibility and hazardous road condition alerts for driver safety and traffic control.
6. Optional Cloud Platform
To maximize operational oversight, the INK412 system seamlessly integrates with an optional proprietary industrial IoT Cloud Platform.
-
Real-Time Remote Dashboard: Operators can wirelessly upload data to directly read detection values, monitor equipment operational status, and analyze meteorological metrics remotely.
-
Multi-Site Centralized Management: Enables GPS positioning of multiple distinct monitoring devices, facilitating data-driven, intelligent management across vast highway networks.
-
Alarm Notification: Supports programmable threshold alarms (critical limits, interval alarms, offline alerts) configured to automatically dispatch notifications to relevant personnel via SMS and email.
-
Data Export & Reporting: Generates continuous historical curves and operational logs, highly beneficial for traffic safety analysis, operational efficiency improvements, and regulatory compliance reporting.
