1. Product Overview

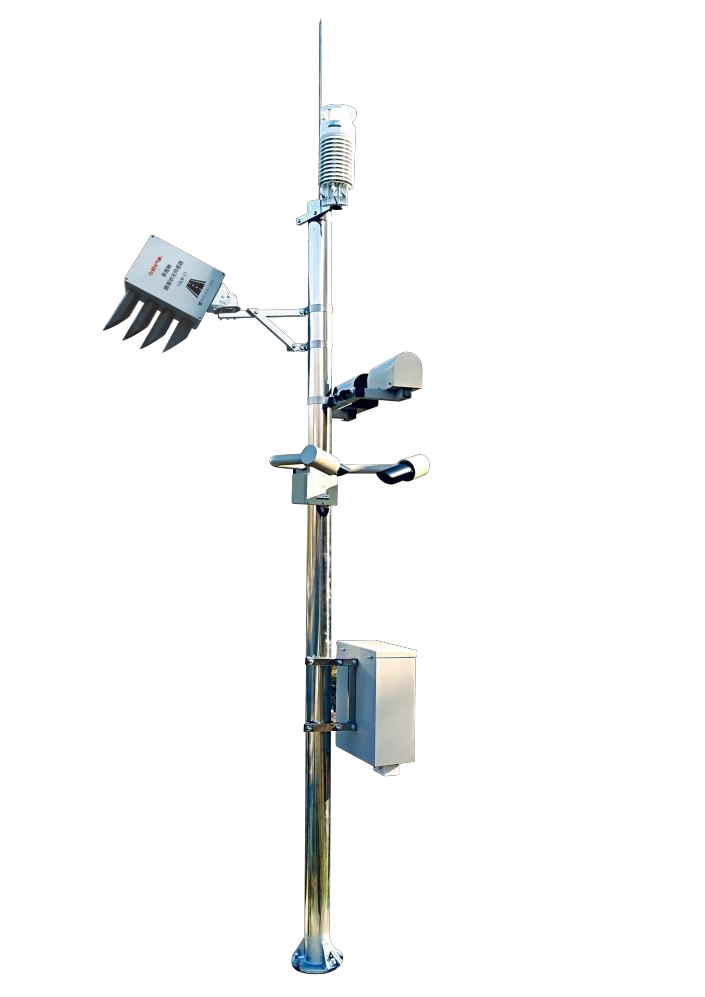

The Induskey INK410 is a high-precision, all-weather, industrial-grade Road Traffic Automatic Meteorological Monitoring System. It consists of a network of automatic weather stations deployed along highways and major roadways, continuously monitoring visibility, wind direction & speed, air temperature, humidity, precipitation, and comprehensive road surface conditions — including dry, damp, wet, snow, ice states, ice thickness, snow depth, and road slipperiness. Monitoring data is transmitted in real-time to the control center to support traffic management decisions and issue timely warnings under severe or extreme weather conditions.
2. System Architecture
The INK410 operates as a fully integrated meteorological monitoring network with the following core components:
-
INK414 — Integrated Weather Station: Combines ultrasonic wind measurement, temperature & humidity sensing, atmospheric pressure monitoring, and optical rainfall detection in one compact unit.
-
INK416 — Visibility Meter: Utilizes forward-scatter infrared detection (Koschmieder principle) with a measurement range of 5 m to 100 km.
-
INK418 — Road Condition Sensor: Employs laser remote sensing technology for non-contact road surface state detection at 2–15 m distance.
-
INK420 — Weather Phenomenon Instrument: Identifies precipitation type and intensity in real-time.
-
Central Control Unit: Receives, processes, and transmits all sensor data to the traffic management center via multiple communication protocols.
-
Power & Communication Module: Supports AC/DC dual-power supply with optional solar panel integration; wired (RS485/RS232) and wireless (GPRS) data transmission.
3. Key Features & Competitive Advantages
A. Advanced Ice & Snow Detection
-
High-precision measurement up to 1,500 mm snow depth and 2.00 mm ice thickness.
-
Spectral analysis technology detects road water, ice, snow and layer thickness simultaneously.
B. Remote Sensing & Non-Contact Measurement
-
Non-contact laser measurement accurate even under heavy traffic conditions.
-
No lane closure required during operation, ensuring uninterrupted traffic flow.
C. Spectral Analysis Technology
D. Robust Industrial Construction
-
Salt-fog resistant and corrosion-proof housing.
-
IP65/IP66 protection rating; suitable for coastal and harsh environments.
-
Operating temperature range: -40°C to +80°C.
E. Flexible Power & Communication
-
AC/DC dual-power system (DC 12 V / AC 220 V).
-
Optional solar panel for off-grid and remote installation.
-
RS485, RS232, and GPRS wireless communication options.
-
Supports long-range deployment and remote telemetry.
F. Network Integration & Display Options
4. Technical Specifications
| System Parameter |
Specification |
| Visibility |
|
| Range |
5 ~ 100,000 m (customizable) |
| Accuracy |
±2% (≤1,000 m); ±10% (>1,000 m) |
| Wind Measurement |
|
| Speed |
0 ~ 70 m/s; Accuracy: ±(0.3+0.03V) m/s |
| Direction |
0 ~ 359°; Accuracy: ±3°; Resolution: 1° |
| Meteorological Parameters |
|
| Air Temperature |
-40 ~ 80°C; Accuracy: ±0.2°C; Resolution: 0.1°C |
| Relative Humidity |
0 ~ 100%RH; Accuracy: ±2% (≤80%), ±5% (>80%) |
| Atmospheric Pressure |
300 ~ 1,100 hPa; Accuracy: ±0.3 hPa |
| Road Surface Conditions |
|
| Water Layer Thickness |
0 ~ 2.00 mm; Resolution: 0.01 mm |
| Ice Layer Thickness |
0 ~ 2.00 mm; Resolution: 0.01 mm |
| Snow Depth |
0 ~ 1,500 mm; Accuracy: ±1 mm |
| Road Condition States |
Dry, damp, wet, snow/frost, ice, ice-water mixture |
| Road Surface Temperature |
-40 ~ 70°C; Accuracy: ±0.5°C; Resolution: 0.1°C |
| System Configuration |
|
| Power Supply |
DC 12 V / AC 220 V (dual-power); Optional solar |
| Communication |
RS485 / RS232 / GPRS wireless |
| Protection Rating |
IP65 / IP66 |
| Operating Environment |
-40 ~ 80°C, 0 ~ 100%RH |
5. Applications
The Induskey INK410 is engineered for comprehensive road traffic meteorological monitoring across diverse infrastructure scenarios:
-
Highways & Expressways: Real-time weather monitoring for major arterial roads and inter-city expressways.
-
Urban Traffic Management: City road network weather condition monitoring and early warning systems.
-
Bridge & Tunnel Monitoring: Critical infrastructure weather and road surface condition surveillance.
-
Mountainous & Coastal Roads: All-weather monitoring in challenging terrain and corrosive coastal environments.
-
Airport Access Roads: Precision meteorological data for airport perimeter and access road safety.
-
Logistics & Transport Corridors: Weather monitoring for freight routes and cold-chain logistics highways.
6. Optional Cloud Platform
To maximize operational oversight, the INK410 system seamlessly integrates with an optional proprietary industrial IoT Cloud Platform.
-
Real-Time Remote Dashboard: Operators can wirelessly upload data to directly read detection values, monitor equipment operational status, and analyze meteorological metrics remotely.
-
Multi-Site Centralized Management: Enables GPS positioning of multiple distinct monitoring stations, facilitating data-driven, intelligent management across vast highway networks.
-
Alarm Notification: Supports programmable threshold alarms (critical limits, interval alarms, offline alerts) configured to automatically dispatch notifications to relevant personnel via SMS and email.
-
Data Export & Reporting: Generates continuous historical curves and operational logs, highly beneficial for traffic safety analysis, operational efficiency improvements, and regulatory compliance reporting.
