Engineered for rigorous global industrial standards, the INK150 integrates a powerful German THOMAS™ micro-vacuum pump and premium imported sensors for rapid, precise sampling, even in confined spaces.
Key features include a 2.4-inch HD color display, extensive data logging (100,000 records), and a rugged IP65 explosion-proof housing. With a rapid response time (T90 less than 20s), the INK150 is the professional choice for critical safety monitoring in chemical, pharmaceutical, and environmental sectors.

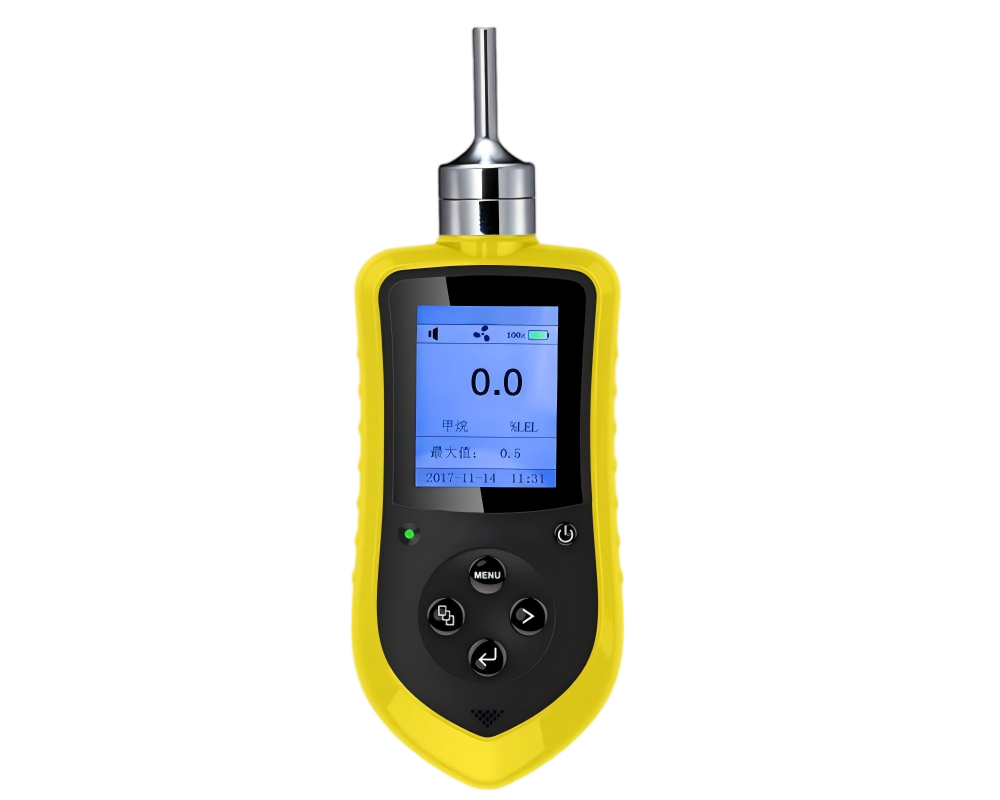

The Induskey INK150 is a premier portable gas detection terminal designed for the accurate measurement of Hydrogen Chloride (HCl) in complex industrial settings. Engineered for reliability, the INK150 integrates a high-performance German THOMAS™ micro-vacuum pump, ensuring stable active sampling even in confined spaces.
Powered by a 32-bit microprocessor and utilizing advanced imported electrochemical sensors, the INK150 delivers rapid response times (T90 is less than 20s) with high linearity. The device features a rugged, ergonomic ABS+PC housing with an IP65 rating, making it resistant to dust, water, and corrosion. With built-in data logging for up to 100,000 records and a vibrant 2.4-inch color display, the INK150 is the ideal solution for professionals requiring rigorous safety compliance and environmental monitoring.
|
General Specifications |
|
|
Model |
INK150 |
|
Target Gas |
Hydrogen Chloride (HCl) |
|
Detection Principle |
Electrochemical (Standard) |
|
Sampling Method |
Active Pump-Suction (Flow rate: 300-500 cc/min) |
|
Measurement Range |
Customizable (e.g., 0-10, 0-20, 0-100 PPM) |
|
Resolution |
0.01 PPM / 0.1 PPM (Range dependent) |
|
Precision |
3%$ F.S. |
|
Response Time |
20 seconds |
|
Repeatability |
2% |
|
Linearity Error |
2% |
|
Electrical & Mechanical |
|
|
Display |
2.4-inch High-Definition Color LCD |
|
Battery |
2800mA Rechargeable Polymer Lithium Battery |
|
Operating Time |
20 Hours (Continuous) |
|
Charging Interface |
Micro-USB (5V DC) |
|
Housing Material |
Industrial ABS + PC (Flame Retardant) |
|
Dimensions |
211.5mm * 73mm * 34.5mm |
|
Weight |
Approx. 240g |
|
Environmental & Safety |
|
|
Operating Temp |
-20°C to +50°C |
|
Operating Humidity |
95% RH (Non-condensing) |
|
Ingress Protection |
IP65 |
|
Explosion Proof |
Ex ib IIC T4 Gb |
|
Alarm Types |
Audible (Buzzer), Visual (LED), On-screen Text, Low Battery, Fault |
|
Data Storage |
100,000 records (Interval adjustable 1-600s) |
The INK400 is engineered for sectors where HCl accumulation poses a critical safety or corrosion risk:
(Placeholder for technical drawing of the device)
