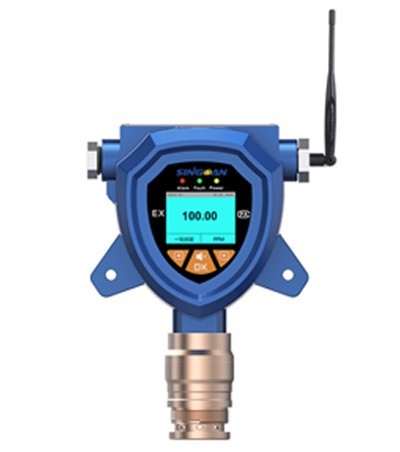

Induskey INK102 Wireless Single Gas Detector

1. Product Overview

The Induskey INK102 is a high-performance, industrial-grade wireless single gas detector designed for the continuous monitoring of toxic, combustible, and volatile organic compound (VOC) gases in hazardous environments. Engineered to eliminate the complexity and cost of traditional hardwired installations, the INK200 integrates advanced sensing technology with robust wireless telemetry.

Featuring a flameproof enclosure and proprietary signal processing, the INK102 ensures reliable data transmission to DCS, PLC, or cloud-based IoT platforms without physical cabling limitations. It is ideal for remote monitoring applications in oil & gas, petrochemical, and heavy industrial sectors where infrastructure flexibility and safety compliance are paramount.

2. Key Features

• Wireless Telemetry: Supports multi-mode wireless transmission (GPRS/4G default; LoRa, ZigBee, NB-IoT, WiFi optional) for seamless integration into IoT ecosystems.
• Intelligent Sensor Module: Utilizes pre-calibrated, smart sensor technology allowing for "hot-swapping" and automatic recognition of sensor types without field calibration


• High-Visibility Interface: Equipped with a 2.4-inch HD color LCD displaying real-time concentration, engineering units, and alarm status with color-coded safety alerts.
• Robust Industrial Design: Cast aluminum alloy enclosure with IP67 ingress protection and Ex d IIC T6 Gb explosion-proof rating, suitable for harsh outdoor conditions


• Data Integrity: On-board storage for over 100,000 data points with automatic cloud synchronization and "black box" functionality for failure analysis.


• Smart Maintenance: Automated alerts for sensor life expiration, calibration due dates, and hardware faults.



3. Technical Specifications

4. Sensor Technology

The INK200 employs a 32-bit nano-level microprocessor combined with a 24-bit high-precision ADC acquisition chip to process signals from premium imported sensors.

• Interchangeability: Smart sensor modules facilitate easy maintenance; replacing the sensor automatically reconfigures the target gas type and range.


• Calibration: Features zero-point auto-calibration, baseline correction, and multi-point target calibration for sustained linearity.


• Compensation: Full-range temperature and humidity compensation algorithms ensure stability across varying environmental conditions.



5. Wireless & Wired Communication

The device offers flexible connectivity options to suit diverse site infrastructures:

• Wireless Interfaces: GPRS/4G (Standard). Optional modules for LoRa, ZigBee, WiFi, NB-IoT, and Wireless Bridge.


• Wired Interfaces (Hybrid Mode): RS485 (Modbus), RS232, 4-20mA Current Loop, 0-5V Voltage, and Ethernet port.


• Transmission Stability: Industrial-grade EMC modules and Level 2 lightning protection ensure data integrity in high-static and strong magnetic field environments.



6. Alarm System & Output Signals

• Local Indication: Three-level alarm thresholds with visual status indicators. Optional integrated acoustic-optic alarm beacon.


• Relay Outputs: 2 x Passive Dry Contacts (1A/24VDC), configurable as Normally Open (NO) or Normally Closed (NC) for driving external fans, valves, or shut-down systems.


• Remote Alerts: Integration with the Induskey IoT platform allows for alarm notifications via SMS, Email, and Mobile App push notifications.


• Silence Function: One-key silence feature for temporary alarm suppression during maintenance.



7. Environmental Adaptability

Engineered to withstand rigorous industrial conditions:

• Ingress Protection: IP67 (Dust-tight and protected against temporary immersion).


• Explosion Proof: Ex d IIC T6 Gb.


• Operating Temperature: -20°C to +50°C (Standard). Optional high-temperature probe allows sampling up to 800°C.


• Operating Humidity: 10% to 95% RH (Non-condensing). Pre-treatment systems available for 99% RH environments.


• Corrosion Resistance: Nano-coated enclosure provides resistance to acid, alkali, rain, and solar radiation.



8. Data & Cloud Platform

The INK200 is fully compatible with the Induskey IoT Cloud Platform for comprehensive asset management:

• Real-Time Monitoring: View live data across PC, Mobile App, and Web interfaces.


• Historical Analysis: Generate historical curves, export data, and track alarm logs. The platform supports unlimited data storage.


• Remote Configuration: Modify alarm setpoints, adjust measurement ranges, and perform zero-point adjustments remotely.




9. Certifications & Compliance

The INK200 is manufactured in compliance with international standards:

• Explosion Proof: GB3836.1-2010 / GB3836.2-2010 (Equivalent to IEC 60079 series).


• Design Standards: GB 50493-2009 (Petrochemical Design Code), GB 12358-2006.


• Quality Assurance: ISO9001, ISO14001, SIL Safety Integrity Level, CE, RoHS.


• Metrology: CPA Pattern Approval, Third-party Metrology Certification.



10. Applications

• Petrochemical Refineries
• Chemical Manufacturing Plants
• Wastewater Treatment Facilities
• Pharmaceutical Production
• Underground Utility Tunnels
• Steel & Metallurgy

11. Ordering Information

• Base Model: INK200 (Wireless Single Gas Detector).


• Sensor Selection: Specify Target Gas and Range (e.g., H2S 0-100 ppm).
• Wireless Module: Specify Protocol (GPRS/4G Default).
• Sampling Config: Diffusion (Default) or Pump-Suction adapter.
