1. Product Overview

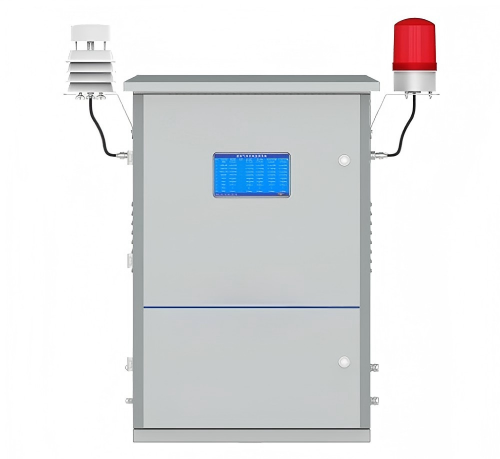

The Induskey INK900 is an advanced, multi-component Continuous Emission Monitoring System (CEMS) explicitly engineered for the real-time, online measurement of greenhouse gas (GHG) emissions. Designed to meet stringent carbon compliance frameworks, emission reporting protocols, and continuous environmental supervision requirements, the system accurately quantifies principal greenhouse gases including Carbon Dioxide (CO₂), Methane (CH₄), Nitrous Oxide (N₂O), Sulfur Hexafluoride (SF₆), Nitrogen Trifluoride (NF₃), and Chlorofluorocarbons (CFCs).

Engineered for industrial-grade deployment, the INK900 features a modular multi-gas detection capability that adapts to variable regulatory demands. The system is built to withstand harsh industrial environments, offering high-temperature sampling capabilities that facilitate direct extraction and analysis from high-heat exhaust streams and stacks.

2. System Architecture

The INK900 CEMS operates on a fully integrated architecture encompassing extraction, conditioning, analysis, and data transmission.

• Sampling Unit: Utilizes a robust extraction mechanism designed for continuous operation, capable of long-distance sampling.


• Pre-Treatment Module: Incorporates advanced conditioning technologies to effectively filter fine impurities. This includes a dual-stage high-efficiency filtration process for dust removal, moisture extraction, and gas drying prior to analysis.


• Built-In Vacuum Pump: Features an imported, high-performance original vacuum pump that ensures a stable and consistent sample gas flow.


• Intelligent Temperature Stabilization System: Maintains a constant internal analyzer temperature of approximately 25°C, ensuring high analytical precision regardless of extreme external fluctuations.


• Multi-Gas Sensor Module: Utilizes an independent gas chamber design tailored for specific target gases, ensuring comprehensive and effective reaction and detection.


• Data Processing and Analysis Unit: Processes sensor signals to output real-time concentration values accurately.


• Local Display and Storage: Features industrial-grade visualization and built-in mass storage for historical data retention.


• Remote Transmission Capability: Supports both wired and wireless data uplink for centralized monitoring.


• Optional IoT Cloud Platform Integration: Enables unified management and data routing to corporate dashboards or regulatory environmental platforms.



3. Key Features & Competitive Advantages

A. Multi-Gas Configurability

• Configurable to monitor between 1 and 6 standard greenhouse gas parameters, with the architecture supporting expansion up to 10 independent target gases.


• Supports arbitrary combinations of target gases across unconstrained detection ranges.


• Scalable to include supplementary meteorological and environmental parameters such as PM2.5, PM10, temperature, humidity, wind speed, wind direction, and atmospheric pressure.



B. High-Precision Measurement

• Capable of identifying target gas concentrations down to the parts-per-billion (ppb) level, utilizing a 32-bit processing chip core.


• Features automatic zero-point calibration and baseline adjustment to maintain continuous data stability.


• Utilizes an intelligent K-value algorithm, full-range temperature and humidity compensation, and proprietary data correction functions for long-term accuracy.



C. Industrial Sampling System

• Equipped with a high-performance imported vacuum pump to guarantee steady sample extraction. * Integrates multi-stage protection devices to eliminate particulate matter and condensable moisture from the sample stream.


• Offers an optional high-temperature probe, allowing direct gas sampling in environments reaching up to 800°C.



D. Smart Sensor Technology

• Employs pre-calibrated smart gas sensors with plug-and-play functionality and automatic system recognition.


• Features an independent sensor gas chamber design that yields rapid and effective feedback of target concentrations.


• Permits straightforward, on-site replacement of consumable sensor modules upon the end of their lifecycle, eliminating the need for system dismantling or factory return.



E. Data Management & Connectivity

• Integrates a 7-inch industrial-grade high-definition touchscreen interface for immediate data visualization.


• Displays real-time values, maximums, minimums, as well as 1-minute and 1-hour rolling averages.


• Allows operators to query historical data across arbitrary timeframes and project this data into graphical curve displays.


• Built-in high-capacity memory card supports the secure logging of over 100,000 discrete data records.


• Facilitates physical data export via USB flash drive in standard Excel formatting.


• Provides wired (RS485, RS232) and wireless (GPRS) remote transmission topologies.



F. Reliability & Protection

• Housed in a dual-layer protective enclosure utilizing nano-protective coating technology to ensure ventilation and heat dissipation.


• Enclosure is highly resistant to sun, rain, acid, alkali, and corrosion, safeguarding the analytical components.


• Features an industrial-grade EMC module and Level 2 lightning protection, enabling stable operation in high-static and strong magnetic environments.


• Rated for continuous operation in extreme ambient temperatures ranging from -40°C to +100°C.



4. Technical Specifications

5. Applications

The Induskey INK900 is engineered for versatile deployment across heavy industries and compliance sectors:

• Steel & Metallurgy: Steel plants, smelting facilities, and industrial process control.


• Petrochemical & Refinery: Petroleum and petrochemical complexes, natural gas facilities, and oil pipelines.


• Power Generation: Thermal power plants and boiler rooms.


• Coal & Mining: Coal plants and underground coal mines.


• Waste Treatment: Garbage disposal plants, solid waste combustion facilities, and sewage treatment plants.


• Environmental Supervision: Atmospheric environmental monitoring, exhaust stacks, and indoor air quality verification.


• Research & Infrastructure: Scientific research institutions, university laboratories, building construction, and underground tunnel networks.



6. Optional Cloud Platform

To maximize operational oversight, the INK900 CEMS seamlessly integrates with an optional proprietary industrial IoT Cloud Platform.

• Real-Time Remote Dashboard: Operators can wirelessly upload data to directly read detection values, monitor equipment operational status, and analyze concentration metrics remotely.


• Multi-Site Centralized Management: Enables GPS positioning of multiple distinct monitoring devices, facilitating data-driven, intelligent management across vast industrial footprints.


• Alarm Notification: Supports programmable threshold alarms (critical limits, interval alarms, offline alerts) configured to automatically dispatch notifications to relevant personnel via SMS, email.
